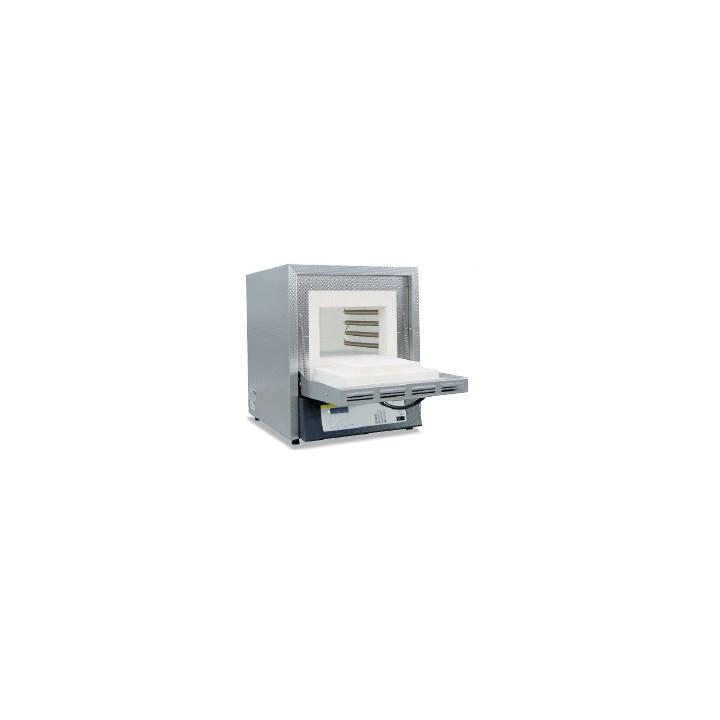

Muffle furnace L5/14/B510 Tmax1400 with swing door – high-performance laboratory furnace

Muffle furnace L5/14/B510 Tmax1400 with swing door The excellent workmanship, modern good design and a high degree of reliability characterize this model series. Thanks to the heating elements mounted on support tubes and radiating freely into the furnace chamber, these muffle furnaces achieve particularly short heating-up times and can be used for a maximum temperature of up to 1400 °C. Thus, these muffle furnaces are an alternative to the well-known L(T) ../12 models when particularly short heating-up times or a higher application temperature are required. Tmax 1400 °C Heating from two sides Heating elements on support tubes ensure free heat radiation and a long service life Exclusive use of insulation materials without classification according to Regulation (EC) No. 1272/2008 (CLP) Double-walled housing made of stainless steel textured sheet for low external temperatures and high stability Adjustable air inlet opening in the door Exhaust air opening in the rear wall of the furnace Controller with B510 touch operation (5 programs with 4 segments each) Low-noise operation of the heating with semiconductor relays Intended use within the scope of the operating instructions NTLog Basic for Nabertherm controllers: Recording process data with a USB stick.
