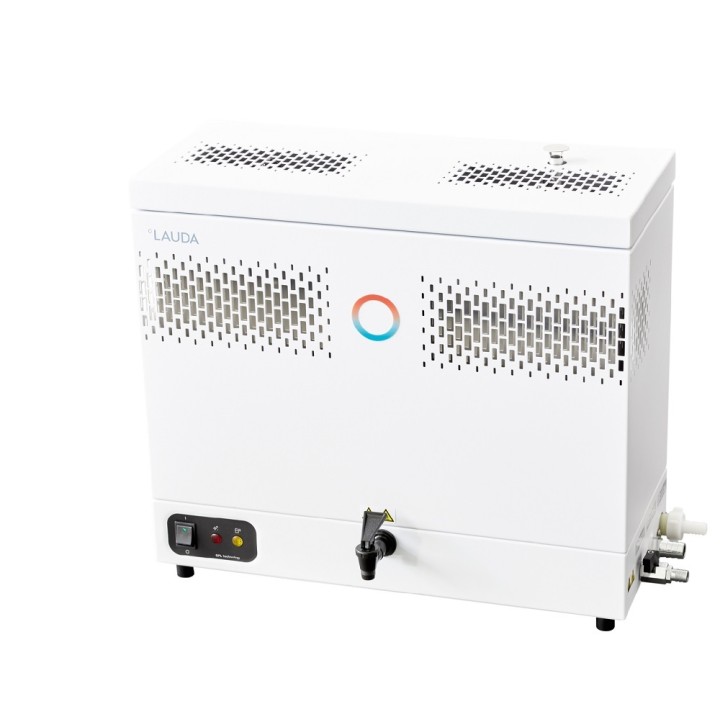

LAUDA Puridest PD 8 R water distiller 400 V; 3/N/PE; 50/60 Hz Performance features: Mono-distiller (fully automatic) with storage tank, suitable for wall mounting and tabletop installation Storage tank for distillate holds twice the hourly output of the unit Distillate outlet tap with continuous and tip positions Condenser (cooling coil) in the storage tank, easily replaceable Solenoid valve for controlling the water supply Energy savings through distillation of the heated cooling water Water savings through automatic shut-off. Unnecessary water consumption is avoided Distillation flask easily accessible for cleaning purposes CO2 degassing opening on the condenser Electronic contamination monitoring of the distillation flask with distillation stop and optical cleaning indication Automatic refilling of the storage tank after distillate removal, controlled by electronic level detection Thermostatic low-water safety device. Tubular heater, distillation flask, storage tank and condenser made of stainless steel Rust-free Housing made of galvanized sheet steel, powder-coated Double-walled housing design Technical data: Conductivity of mono-distillate at 25°C: 2.3 µS/cm Production output: 8 L/h Tank volume: 16 L Heating output max.: 6 kW Power consumption max.: 6 kW Cooling water consumption: 1.2 L/min Minimum cooling-water pressure difference: 3 bar Maximum cooling-water pressure: 7 bar Water cooling inlet for hose: 1/2 '' Water cooling outlet for hose: 3/4 '' Dimensions (WxDxH): 780 x 410 x 540 mm Weight: 34 kg Ambient temperature range: 10 ... 40 °C Mains supply: 400 V; 3/N/PE; 50/60 Hz Mains plug: Mains cable with plug (IEC 60309, 5-pin, CEE, red, 16 A)
