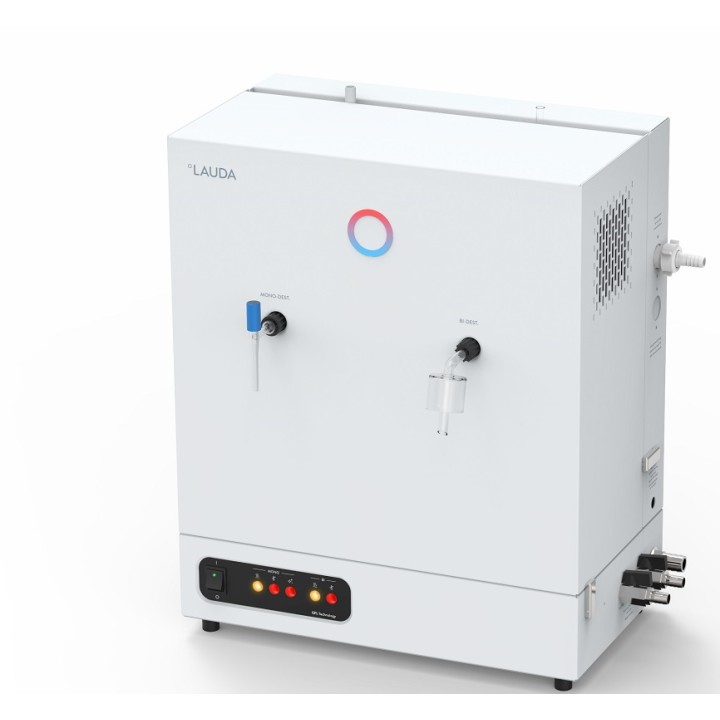

LAUDA Puridest PD 8 G water distiller 400 V; 3/N/PE; 50/60 Hz Performance features: Mono-distiller (fully automatic) made of glass, suitable for wall mounting and benchtop installation Distillate removal on the right side of the unit via hose connection Distillation flasks, condensers and overflows DURAN® / borosilicate glass 3.3 Condensers with droplet-repellent vapour guidance Sterilisation of the condensers by steaming Solenoid valve for controlling the water supply Energy savings through distillation of the heated cooling water Water savings through automatic shut-off. Unnecessary water consumption is avoided Visible operation through a non-fogging, shatterproof and easily removable front pane CO2 degassing opening on the condenser Electronic level monitoring throughout the entire distillation process Monitoring of the water level in the evaporator with automatic power shut-off in the event of water shortage An electronic dirt monitor initiates automatic water replacement for rinsing and cleaning the evaporator Heating rods with quartz glass sheathing Housing made of galvanised sheet steel, powder-coated Technical data: Conductivity of mono-distillate at 25°C: 2.2 µS/cm Production capacity: 8 L/h Max. heating capacity: 6 kW Max. power consumption: 6 kW Cooling water consumption: 2.4 L/min Minimum cooling water pressure difference: 3 bar Maximum cooling water pressure: 7 bar Water cooling inlet for hose: 1/2 '' Water cooling outlet for hose: 1/2 '' Dimensions (WxDxH): 650 x 365 x 390 mm Weight: 25 kg Ambient temperature range: 10 ... 40 °C Mains supply: 400 V; 3/N/PE; 50/60 Hz Mains plug: Power cable with plug (IEC 60309, 5-pole, CEE, red, 16 A)
