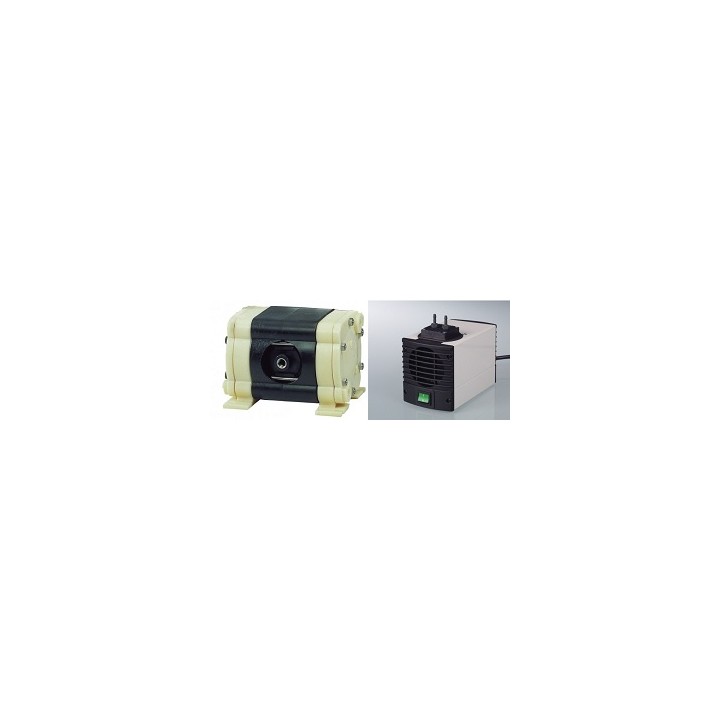

SIMDOS 02 FEM1.02TT.18S PVDF dosing pump – chemical-resistant diaphragm pump, 0.03-20 ml/min, PVDF,

Chemical-resistant diaphragm dosing pump SIMDOS® 02 TT.18 S – delivery rate of 0.03 - 20 ml/min / delivery head 60 mWC, suction head 2 mWC – pump head made of PVDF – diaphragm made of PTFE, valves made of FFKM – delivery rate manually adjustable (version S) – additional safety diaphragm for maximum protection – easy replacement of the delivery diaphragm by activating the maintenance command stored in the operating program Technical data Application Dosing liquids Delivery rate (ml/min) with water at 20 °C at zero delivery head 0.03 - 20 Delivery head (mWC) 60 Suction head (mWC) 2 Tube connection (mm) ID1.6 / AD3.2 Permissible medium and ambient temperature Ambient temperature +5 ... +40 °C Medium temperature +5 ... +80 °C Weight (kg) 0.9 Dimensions W x H x D (mm) 93 x 144 x150 Pump head material PVDF Diaphragm PTFE Valves FFKM Included in delivery: -Dosing pump -Suction filter -2 metres of connection tubing -Power supply   Accessories (not included in delivery) Stand holder Order no. 160474 Wall holder Order no. 160473 In-line filter FS 60 T PVDF mesh size 70 µm Order no. 165210 FS 60 X PEEK mesh size 35 µm Order no. 165212 Back pressure valve JFDV30FTZ: 166288 (PTFE) Back pressure valve JFDV30TTZ: 166287 (PVDF) Back pressure valve JFDV30KTZ: 166286 (PP)
