SIMDOS 02 FEM1.02FT.18RCP Diaphragm Pump | Hornik

SIMDOS 02 FEM1.02FT.18RCP diaphragm dosing pump PVDF/FFKM RC Plus

KNF
zł16,344.36
VAT excluded
SIMDOS 02 FEM1.02FT.18RCP diaphragm dosing pump PVDF/FFKM RC Plus
Please sign in to use quick buy.

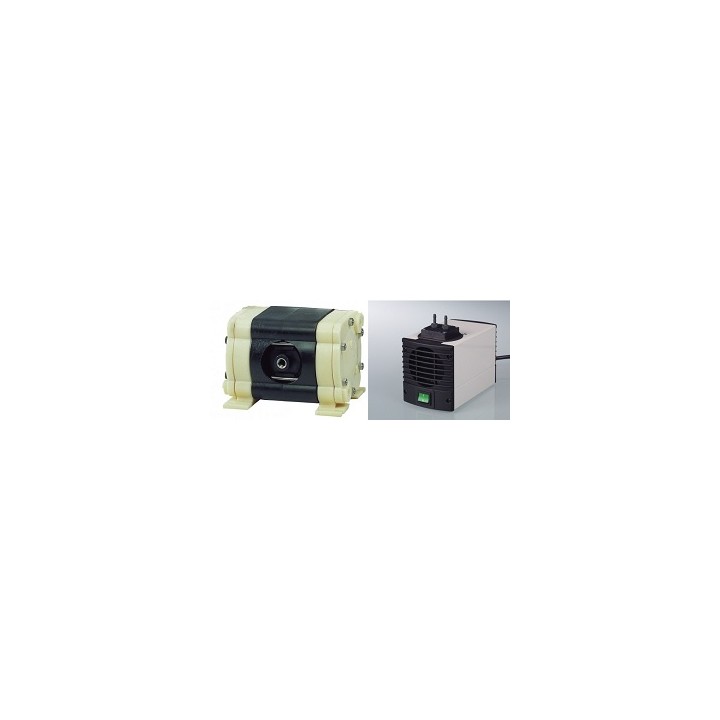

Product images may differ from the original.

Item no.: 9983673

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • Chemical-resistant diaphragm dosing pump SIMDOS® 02 FT.18 RC P - flow rate of 0.03 - 20 ml/min / pressure head 60 mWS, suction head 2 mWS - pump head in PVDF material version - diaphragm FFKM, valves made of FFKM - flow rate adjustable manually and via external control, including RS 232 interface (RC Plus version) - Additional safety diaphragm for maximum protection - Easy replacement of the delivery diaphragm by activating the maintenance command stored in the operating program Technical data Application Dosing liquids Flow rate (ml/min) with water at 20 °C at zero delivery head 0.03 - 20 Pressure head (mWS) 60 Suction head (mWS) 2 Hose connection (mm) ID1.6 / AD3.2 Permitted media and ambient temperature Ambient temperature +5 ... +40 °C Media temperature +5 ... +80 °C Weight (kg) 0.9 Dimensions W x H x D (mm) 93 x 144 x150 Pump head material PTFE Diaphragm FFKM Valves FFKM Included in delivery: -Dosing pump -Suction filter -2 metres of connection tubing -Power supply   Accessories (not included in delivery) Stand holder Order No. 160474 Wall holder Order No. 160473 Foot switch for RCP version (RCP = manual operation and external control) Order No. 155872 In-line filter FS 60 T PVDF mesh size 70 µm Order No. 165210 FS 60 X PEEK mesh size 35 µm Order No. 165212 Back-pressure valve JFDV30FTZ: 166288 (PTFE) Back-pressure valve JFDV30TTZ: 166287 (PVDF) Back-pressure valve JFDV30KTZ: 166286 (PP)

  • Brand
  • Reference
    9983673
