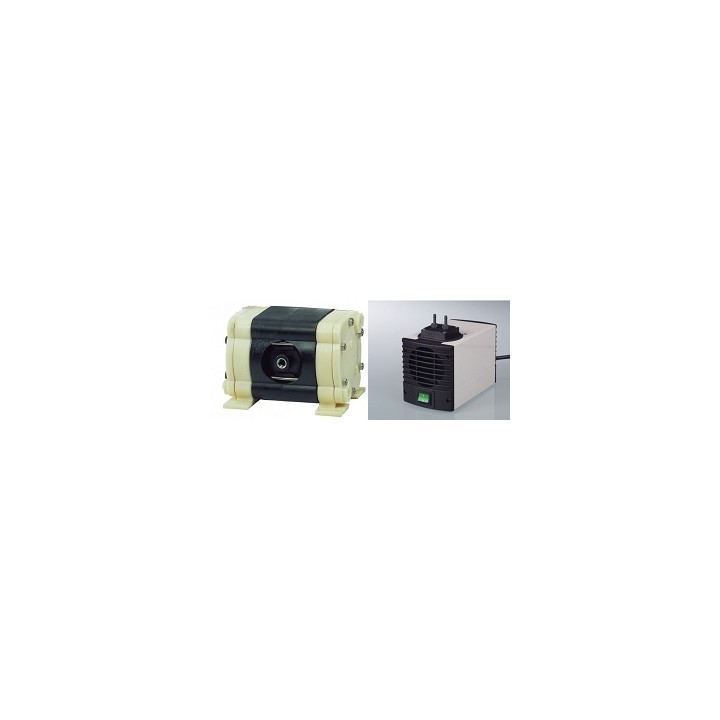

LIQUIPORT NF 1.300 KT.18 RC membrane pump, 0.5-3 l/min, PP/PTFE/FFKM, RC images
LIQUIPORT NF 1.300 KT.18 RC membrane pump, 0.5-3 l/min, PP/PTFE/FFKM, RC
Price:
zł5,398.92
VAT excluded
LIQUIPORT NF 1.300 KT.18 RC membrane pump, 0.5-3 l/min, PP/PTFE/FFKM, RC
- Liquid membrane pump LIQUIPORT® NF 1.300 KT.18 RC - Flow rate from 0.5 - 3 l/min / pressure head 60 mWS, suction head 3 mWS - Self-priming, dry-run safe - Pump head made of PP - Membrane made of PTFE, valves made of FFKM - Flow rate can be adjusted manually and via external control (RC version) Technical data Application Pumping liquids Flow rate (l/min) with water at 20 °C at zero pressure head 0.5 - 3 Pressure head (mWS) 60 Suction head (mWS) 3 Hose connection (mm) ID12 Permissible media and ambient temperature Ambient temperature +5 ... +40 °C Media temperature +5 ... +80 °C Weight (kg) 1.5 Dimensions W x H x D (mm) 104 x 188 x 160 Pump head material PP Membrane PTFE Valves FFKM Accessories Stand holder Order No. 160474 Wall holder Order No. 160473 Foot switch for RC version (RC = manual operation and external control) Order No. 155872 Accessories (optional): Hose (PTFE material) 007860
-
Brand
-
Reference9983701
-
MaterialPlastic
