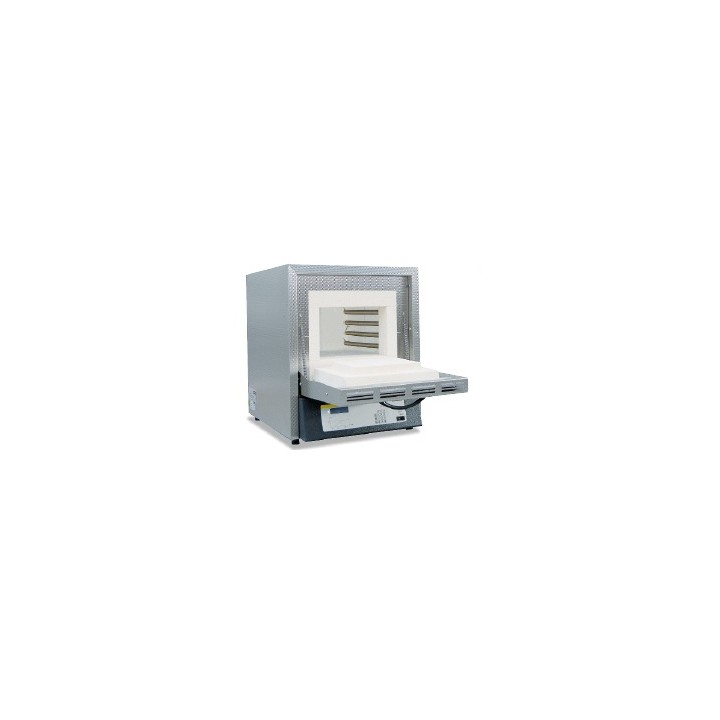

Ashing furnace LV(T) .. 11 is designed especially for ashing processes up to 1050 °C in the laboratory. Applications include determining loss on ignition and ashing food and plastics for subsequent substance analysis.
Standard Equipment Tmax 1100 °C Heating from two sides Ceramic heating plates with integral heating element which is safeguarded and easy to replace Air exchange of more than 6 times per minute Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C) Dual-shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN Optional flap door (LV), which can be used as a work platform, or lift door (LVT) with hot surface facing away from the operator Controller with touch operation B510 (5 programs with 4 segments each) Solid-state relays provide low-noise operation Defined application within the constraints of the operating instructions NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
