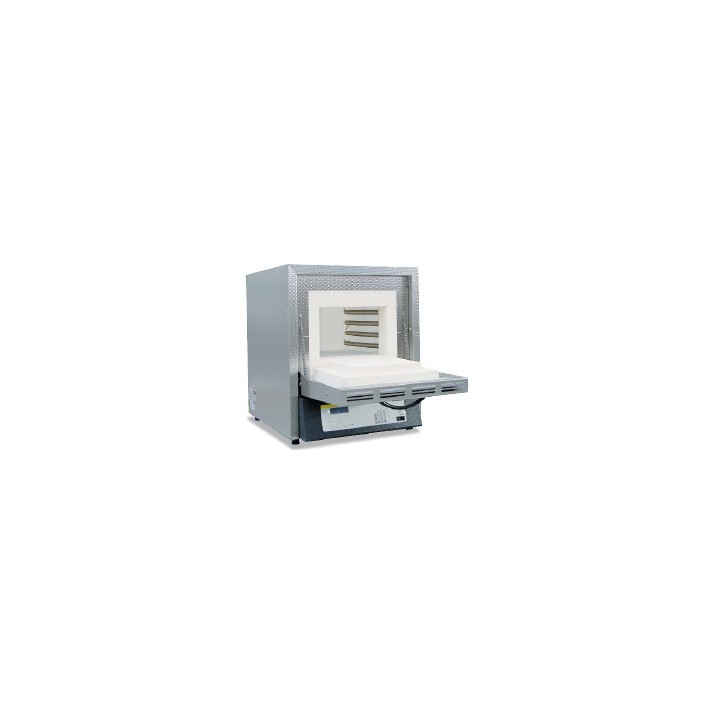

Ashing furnace LVT9/11/B510 TMX1100 lift door for chemical processes

Ashing furnace **LV(T) .. 11** is designed especially for ashing processes to **1050 °C** in the laboratory. Applications include determining **loss on ignition**, ashing food and plastics for subsequent substance analysis. A special **fresh-air and exhaust air system** ensures that the air is replaced **6 times per minute** so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is **pre-heated** to ensure good **temperature uniformity**. **Standard Equipment** **Tmax 1100 °C** **Heating from two sides** **Ceramic heating plates** with integral heating element which is safeguarded, and easy to replace **Air exchange of more than 6 times per minute** Good temperature uniformity due to preheating of incoming air, temperature uniformity according to **DIN 17052-1 to +/- 10 °C** in the defined empty work area (from **550 °C**) **Dual shell housing** made of textured stainless steel sheets with additional **fan cooling** for low surface temperature Exclusive use of insulation materials without categorization according to **EC Regulation No. 1272/2008 (CLP)** Suitable for many standardized ashing processes according to **ISO, ASTM, EN, and DIN** Optional **flap door (LV)** which can be used as work platform or **lift door (LVT)** with hot surface facing away from the operator Controller with **touch operation B510** (**5 programs** with each **4 segments**) **Solid state relays** provide for lownoise operation Defined application within the constraints of the **operating instructions** **NTLog Basic for Nabertherm controller**: recording of process data with **USB-flash drive**
