RCT basic ETS-D5 Solution, ETS-D5 thermometer, PT1000.60, RCT basic stirrer

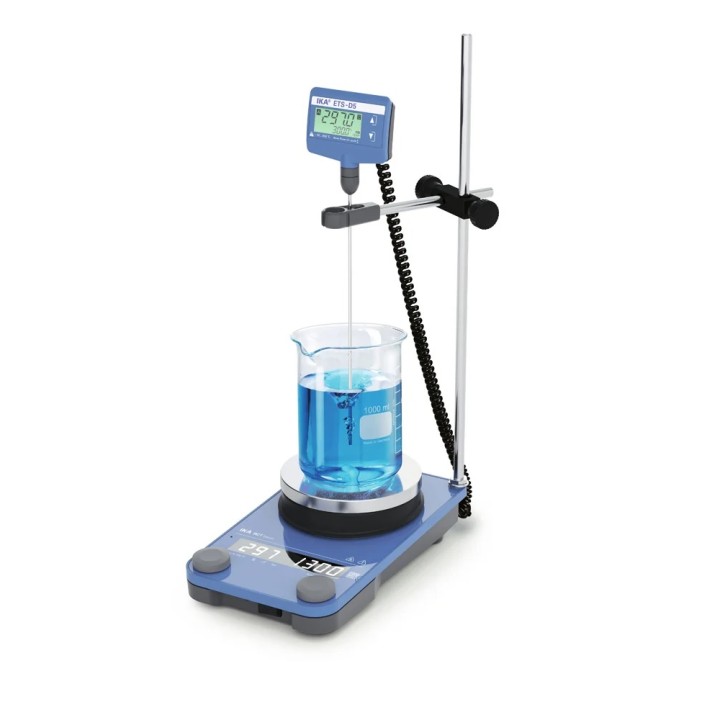

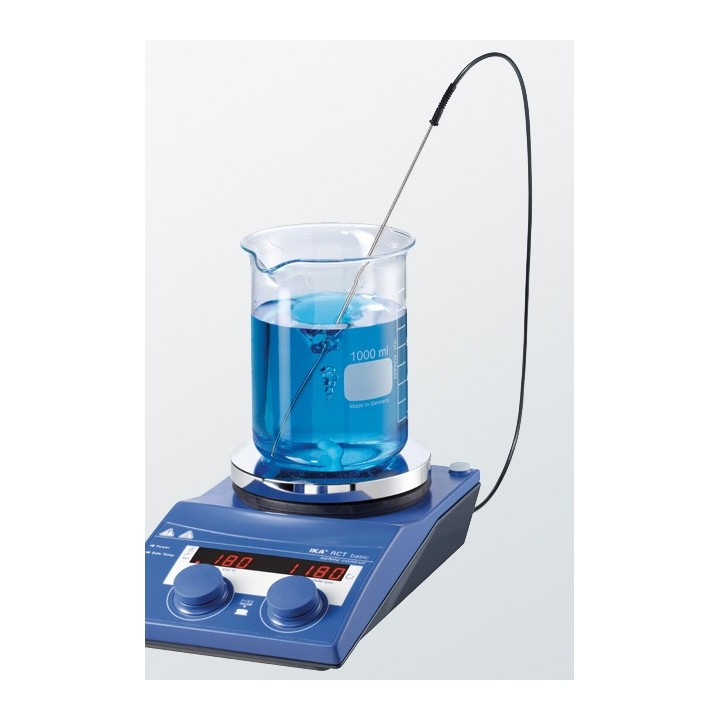

RCT basic ETS-D5 Solution, magnetic stirrer with heating This system solution makes experiments and reactions even safer: RCT basic ETS-D5 Solution consists of the RCT basic magnetic stirrer and the ETS-D5 electronic contact thermometer. Improved temperature control By combining both devices, the internal safety circuit, independent of the RCT basic software, can be addressed directly by the contact thermometer. The maximum permissible temperature in the medium is limited independently of the setpoint temperature. If this value is exceeded, the magnetic stirrer’s heating function switches off via the internal safety circuit – until the device is restarted. At the same time, the stirring function remains active to prevent delayed boiling. The set safety temperature of the heating plate also remains available. The ETS-D5 setpoint temperature limit and the heating plate’s safety temperature form an OR connection. This means that each potential fault independently causes the heating to switch off. In addition, the heating plate temperature can be set independently of the medium temperature. This allows you to actively influence the heating times. Improved display The ETS-D5 also expands the display of your magnetic stirrer. The setpoint and actual value of the medium temperature can be seen at a glance on the contact thermometer with a resolution of 0.1 K. In this combination, the setting accuracy is also refined from 1 K to 0.1 K. The current heating plate temperature is additionally displayed on the RCT. Another advantage: the contact thermometer display can be positioned at eye level. This makes it immediately clear where the temperature is measured and controlled. In addition to the magnetic stirrer and contact thermometer, the complete solution also includes all required fastening elements.
