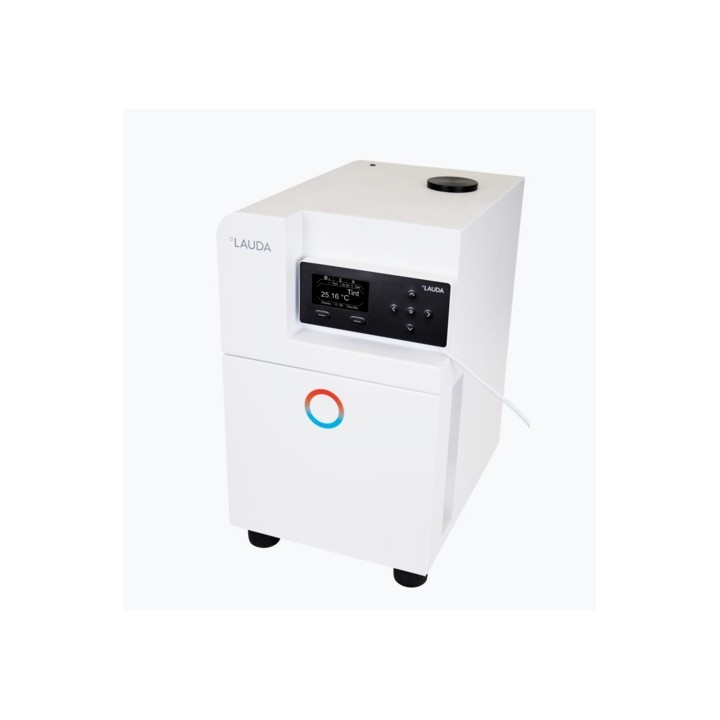

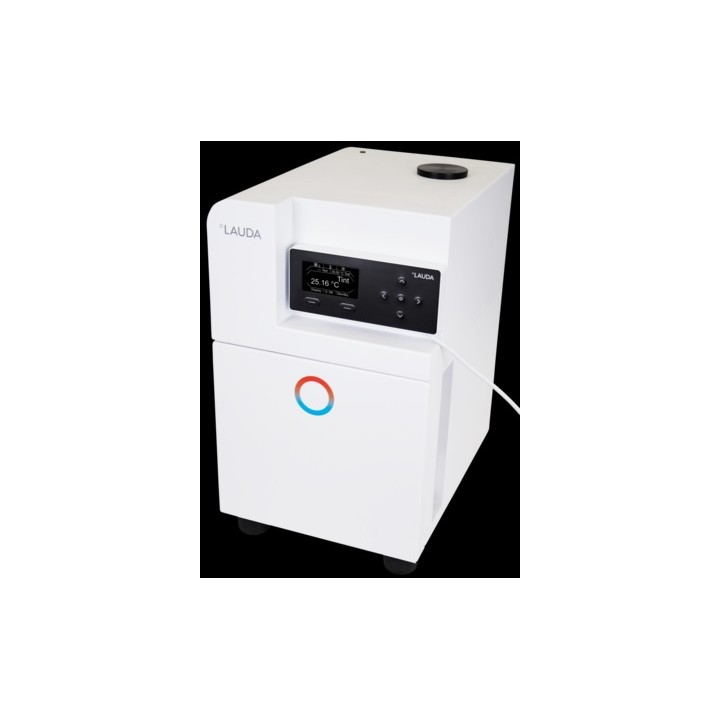

LAUDA PRO P 2 E heating circulating thermostat, 80 ... 250 °C

Lauda
LAUDA PRO P 2 E heating circulating thermostat, 80 ... 250 °C

Product images may differ from the original.

Item no.: 9987870

Delivery time: On request

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • LAUDA PRO P 2 E heating circulating thermostat 200-230 V;
  • 50/60 Hz
  • Performance features:
  • Circulating thermostat with state-of-the-art microprocessor technology and integrated cooling coil
  • Bright and high-contrast graphical OLED display
  • Integrated programmer, 1 program with max. 20 segments
  • Input options via cursor keys and soft keys
  • EasyUse system for particularly simple handling and operation of the entire device
  • SelfCheck assistant for system diagnosis
  • Removable control panel for remote control
  • Tower design for a small footprint
  • Low filling volume enables rapid temperature changes
  • Stainless steel temperature-control chamber (insulated, with overflow and drain tap)
  • LAUDA Varioflex pump with 8 selectable power levels, pump connections at the rear
  • USB and Ethernet interfaces included as standard
  • Can be retrofitted with an interface module (RS 232/485, Profibus;
  • EtherCAT;
  • analog or contact modules)
  • Fully electronic continuous controller with PID behavior for internal and external control
  • PowerAdapt system for optimally adapted maximum heating output without overloading the power supply
  • Low-level protection and adjustable overtemperature protection with acoustic alarm for operation with flammable and non-flammable liquids
  • Technical data (according to DIN 12876):
  • Operating temperature range: 80 ... 250 °C
  • Operating temperature range with water cooling: 20 ... 250 °C
  • Operating temperature range: -30 ... 250 °C
  • Ambient temperature range: 5 ... 40 °C
  • Temperature constancy: 0.05 ± K
  • Max. heating output: 2.5 kW
  • Max. power consumption: 2.7 kW
  • Current consumption: 12 A
  • Max. pump pressure: 0.7 bar
  • Max. pump suction: 0.4 bar
  • Max. pump flow rate (pressure): 22 L/min
  • Max. pump flow rate (suction): 20 L/min
  • In / Outlet connection thread (external): M16 x 1
  • In / Outlet olive diameter: 13 mm
  • Min. filling volume: 2.4 L
  • Max. filling volume: 4.4 L
  • Dimensions (WxDxH): 250 x 365 x 425 mm
  • Weight: 17 kg
  • Power supply: 200-230 V;
  • 50/60 Hz
  • Mains plug: power cable with angled Schuko plug (CEE7/7)
  • Standard accessories:
  • 2 union nuts, 2 sealing plugs
  • 2 hose olives 13 mm for pump connection
  • 2 hose olives 10 mm with union nut G3/8 for cooling water connection

  • Brand
  • Reference
    9987870
