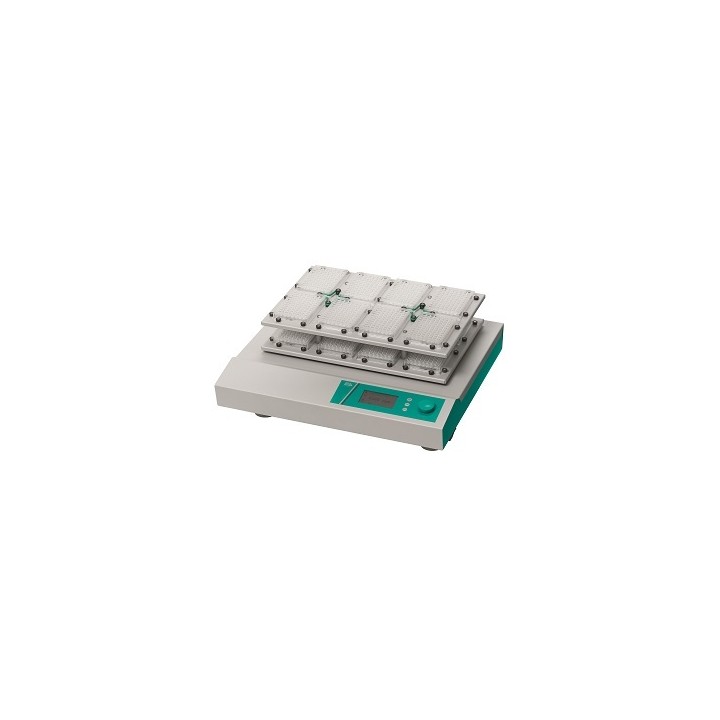

TiMix 5 control microplate shaker without attachment

Description Top technology - also for use in robot analysis systems Scope of delivery Basic unit Base unit without shaking plate, without attachment With touch display and programmable control Technical data Shaking motion: exact circular Shaking surface: 400 x 300 mm for 8 MT plates Max. load: 5 kg Speed control range: 100 - 1400 min-1, in increments of 5 Stroke: 3 mm (special stroke on request) Operating time: programmable / continuous operation Electrical connection: 230 V or 115 V, 50 / 60 Hz (please specify when ordering) Protection rating: IP 21 Power consumption: max. 30 W Heat dissipation: approx. 11 W Ambient temperature: 5°C to 50°C Permissible humidity: ~ 85 % External dimensions (W x D x H): 510 x 490 x 150 mm Weight: 20 kg Loading options (examples) Standard attachment 0052 101 8 MT plates Attachment with pins 0052 096 8 MT plates Standard attachment 0052 101 + extension tray 0052 102 16 MT plates Attachment with Maxi pins 0052 104 24 MT plates Attachment with metal pins 0052 125 48 MT plates
