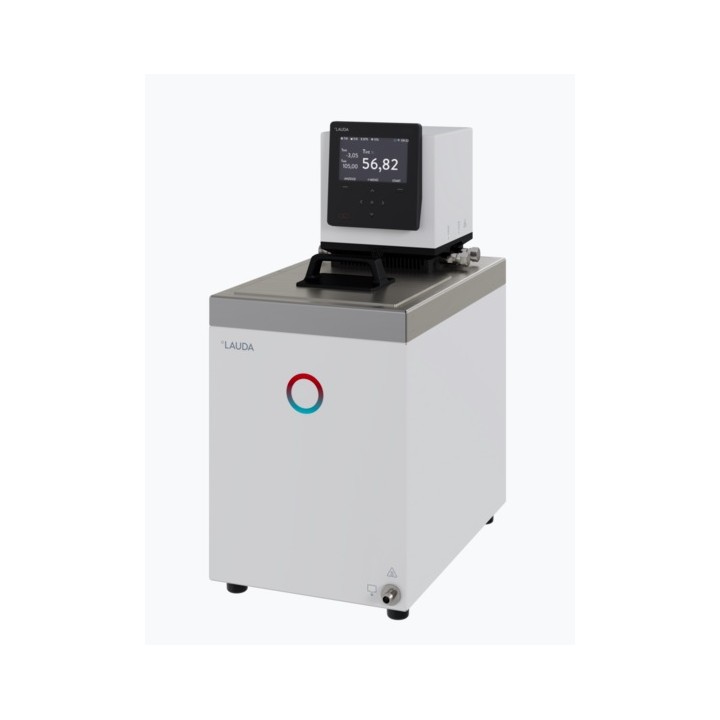

LAUDA Universa U 20 M heating thermostat, 65 ... 300 °C, 22 L images
LAUDA Universa U 20 M heating thermostat, 65 ... 300 °C, 22 L
Price:
€5,376.00
VAT excluded
LAUDA Universa U 20 M heating thermostat, 65 ... 300 °C, 22 L
- LAUDA Universa U 20 M heating thermostat, 200-240 V;
- 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling base enable flexible adaptation to current and future requirements Clear overview, intuitive operation: The colour 5-inch TFT display simultaneously shows temperature values with trend graphic, offers clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys.
- Safety in focus: The dedicated Tmax button enables convenient access to the essential overtemperature protection setting during commissioning.
- Flexible pump performance: The Varioflex pump with eight selectable performance levels, adjustable flow distribution for internal/external circulation for optimum flow rate and pressure. An easily accessible front selector switch on the control head enables adjustment of the pump performance during operation.
- Adaptive bath-edge ventilation (patent pending): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
- Extensive functionality with programmer, safety mode, calibration options, controller self-adaptation and weekly planner for precise and flexible process control.
- Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
- Intelligent remote control and monitoring: An integrated web server enables flexible remote operation in the company network via the LAUDA Command App or browser, secured by PKI and 2-factor authentication.
- Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
- Maximum networking: Extensive connectivity for almost every application thanks to standard Ethernet, USB and interface for an external Pt100 as well as eleven optional interface modules.
- Comprehensive safety functions: - Effective over- and underlevel protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnosis on startup with alarm and error message display - Smart temperature-control medium management with automatic limit-value adjustment.
- For reliable operation and improved safety of your valuable samples.
- Technical data: Operating temperature range: 65 ... 300 °C Operating temperature range with water cooling: 20 ... 300 °C Operating temperature range: -30 ... 300 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,01 ± K Heating power range: 2.8 ... 3.7 kW Current consumption: 16 A Bath size (WxDxH): 200 x 200 x 320 mm Bath opening (WxD): 200 x 200 mm Bath volume min. / max.: 9,5 / 22,0 L Pump pressure max.: 1,1 bar Pump flow rate max. (pressure): 32 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet olive diameter: 13 mm Dimensions (WxDxH): 280 x 450 x 617 mm Weight: 24 kg Mains supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: 1 bath cover Pump connection set with M16x1 stainless steel connections 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection Cooling coil with M16x1 stainless steel connections and plastic caps
-
