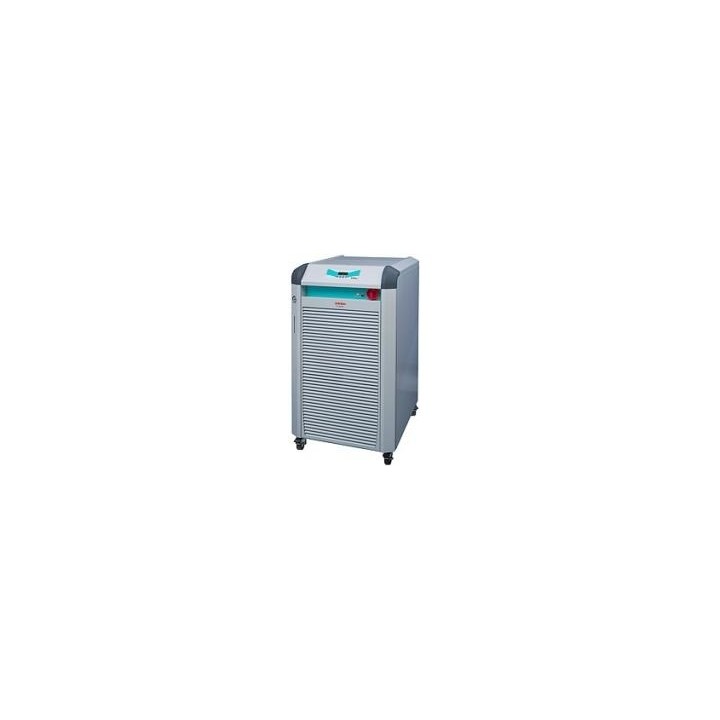

Recirculating chiller FL11006 operating temperature range -20…+40°C
Recirculating chiller FL11006 operating temperature range -20…+40°C
- The most powerful FL recirculating chillers are suitable for various cooling tasks in the industrial sector, e.g. for dissipating process heat from large systems and equipment.
- Air-cooled (FL) and water-cooled (FLW) models are available.
- Bath vessel: Stainless steel Pump type: Submersible pump Product features: - Ergonomic design and easy operation - Splash-proof membrane keypads - Large, bright LED temperature display - Permissible return temperature +80°C - Easy filling from above through a hinged filling opening - Low-level protection with optical and acoustic signal - Integrated stainless-steel bath vessels - Easily accessible drain tap on the front - No side ventilation slots: devices can be positioned next to each other - RS232 interface for PC connection - IP class according to IEC 60529: 21 - Alarm output, potential-free changeover contact (max. 30 VA) - Delivery pressure display Scope of delivery: 2 hose olives for hose 1 l.W. (pump connections with G1 1/4 male thread).
- Cooling capacity: Performance data measured according to DIN 12876.
- Cooling capacities up to 20 °C measured with ethanol, above 20 °C measured with thermal oil, unless otherwise specified.
- Performance data apply at an ambient temperature of 20 °C.
- Performance values may vary with other temperature-control fluids.
-
Brand
-
Reference9016714
