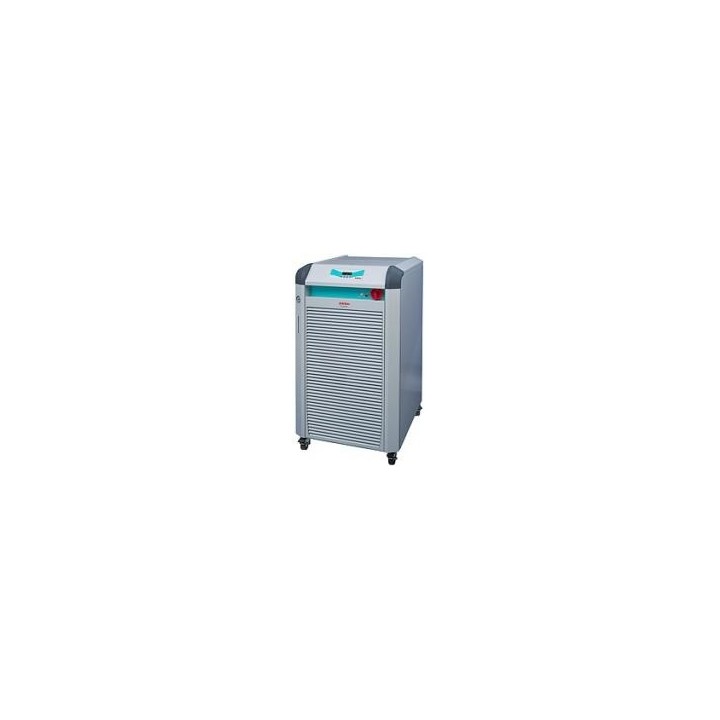

The most powerful FL recirculating chillers are suitable for a wide range of cooling tasks in industrial applications, e.g. for dissipating process heat from large systems and plants. Air-cooled (FL) and water-cooled (FLW) models are available. Bath vessel: stainless steel Pump type: submersible pump Product features: - Ergonomic design and easy operation - Splash-proof membrane keypads - Large, bright LED temperature display - Permissible return temperature +80°C - Easy top filling through hinged filling opening - Low-level protection with visual and audible signal - Integrated stainless steel bath vessels - Easily accessible drain tap on the front - No side ventilation slots: units can be placed next to each other - RS232 interface for PC connection - IP class according to IEC 60529: 21 - Alarm output, potential-free changeover contact (max. 30 VA) - Pump pressure display Scope of delivery: 2 hose olives for hose 1'' inner diameter (pump connections with G1 1/4 male thread). Cooling capacity: Performance data measured according to DIN 12876. Cooling capacities up to 20 °C measured with ethanol, above 20 °C measured with thermal oil, unless otherwise stated. Performance data apply at an ambient temperature of 20 °C. Performance values may differ with other temperature-control fluids.
