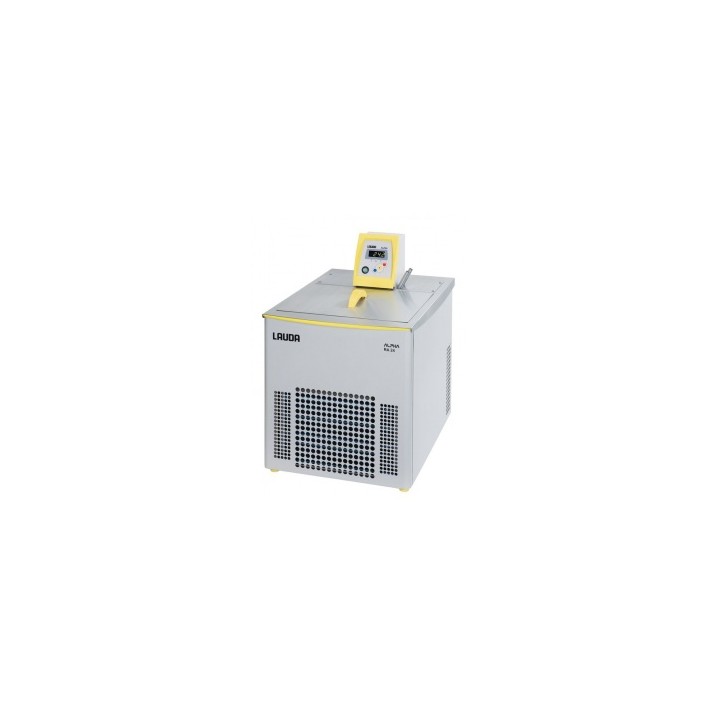

LAUDA Alpha RA 24 Chiller | Hornik

LAUDA Alpha RA 24 chiller -25…100 °C 220 V 60 Hz + 230 V 50 Hz

Lauda
€5,070.00
VAT excluded
LAUDA Alpha RA 24 chiller -25…100 °C 220 V 60 Hz + 230 V 50 Hz
Please sign in to use quick buy.

Product images may differ from the original.

Item no.: 9017684

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • LAUDA Alpha RA 24 chiller 220 V;
  • 60 Hz + 230 V;
  • 50 Hz Features: bath/circulating thermostat with very simple operation and integrated cooling system 1-line LED display for showing actual or setpoint value User-friendly menu navigation and simple 3-button operation Fully electronic continuous controller Low-level and overtemperature protection for operation with non-flammable liquids Audible and visual alarm message Circulating pump with flow reduction Stainless steel bath vessel Cooling via intelligent energy-saving automation (automatic compressor control) Condenser cooling air Drain connection at the rear Operation with non-flammable refrigerant (HFC), compliant with the F-Gas Regulation Regulation (EU) 573/2024 Technical data (according to DIN 12876): Operating temperature range: -25 ... 100 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Heating output max.: 1,5 kW Power consumption max.: 1,8 kW Current consumption: 8 A Pump pressure max.: 0,2 bar Pump flow rate max. (pressure): 15 L/min Bath volume min. / max.: 14,0 / 22,0 L Bath size (WxDxH): 350 x 277 x 160 mm Dimensions (WxDxH): 415 x 605 x 605 mm Weight: 43 kg Refrigerant stage 1: R-134a (GWP 1430);
  • 0,170 kg;
  • 0,2 t CO2-eq Power supply: 220 V;
  • 60 Hz / 230 V;
  • 50 Hz Mains plug: power cable with angled Schuko plug (CEE7/7) Cooling capacity: 20 °C;
  • ethanol;
  • 0,425 kW 0 °C;
  • ethanol;
  • 0,33 kW -20 °C;
  • ethanol;
  • 0,08 kW Standard accessories: 1 bath cover Pump connection set Short-circuit hose for pump connections

  • Brand
  • Reference
    9017684
