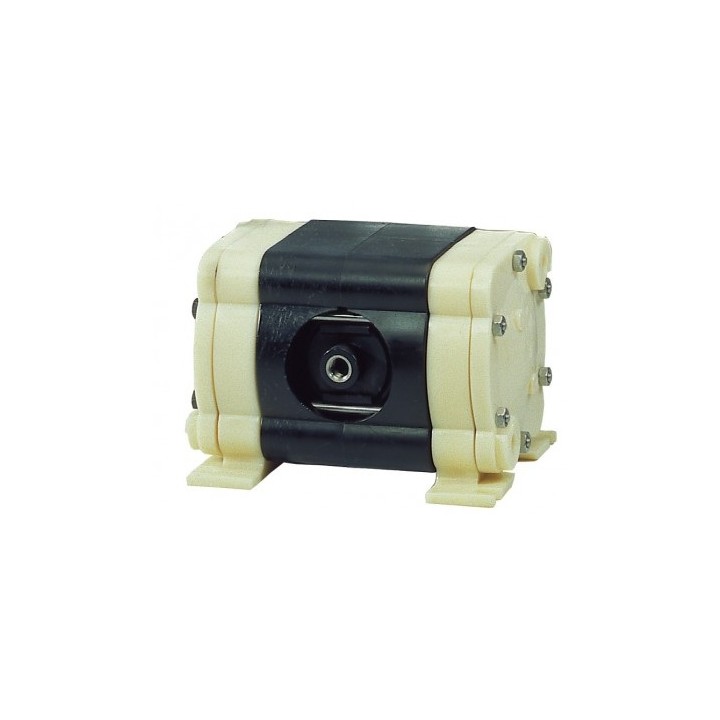

Oil-free double diaphragm pump PP housing, Geolast diaphragm, 16 l/min, 1/4", 1.4-6.8 bar images
Oil-free double diaphragm pump PP housing, Geolast diaphragm, 16 l/min, 1/4", 1.4-6.8 bar
Oil-free double diaphragm pump PP housing, Geolast diaphragm, 16 l/min, 1/4", 1.4-6.8 bar
- Air-operated double diaphragm pump for conveying viscous, corrosive and abrasive liquids.
- The plastic double diaphragm pump is suitable for conveying small quantities, in laboratory applications and for occasional filling.
- Suction and discharge ports are 1/4'' female.
- Solid particles up to 3 mm Ø can be conveyed.
- Required air pressure at start-up min. 2 bar, operating air pressure max. 8 bar.
- Housing, diaphragms, valve balls and seals are available in different materials.
- Air-operated diaphragm pump High hydraulic performance Maintenance-optimised design and easy installation Blockage-free operation Completely oil-free Self-priming (also when dry) Typical applications for the double diaphragm pump include, for example, chemical circulation and feed, liquids with solid particles such as paints and coatings, electroplating liquids, etc.
-
Brand
-
Reference9031101
-
MaterialPlastic
