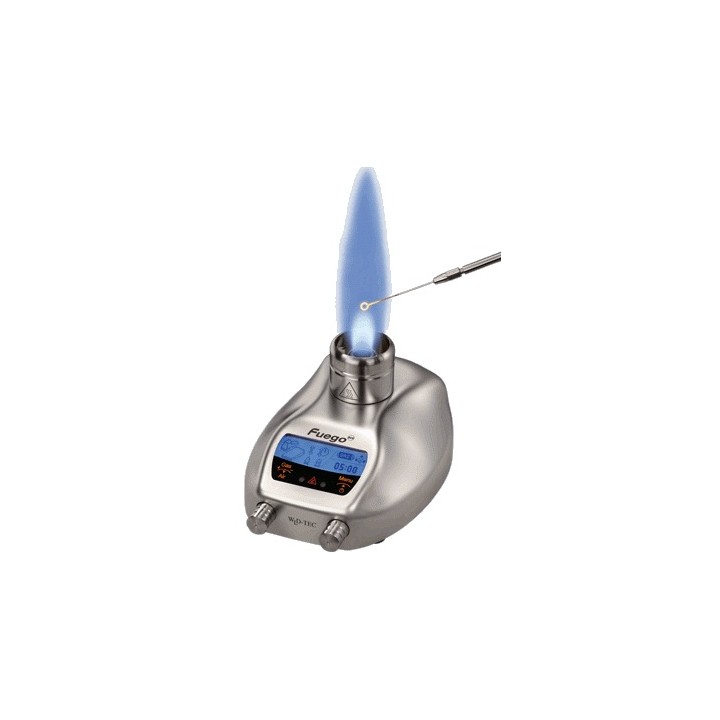

Fuego SCS IR sensor, LC display and button function – safety laboratory gas burner

Fuego SCS – safety laboratory gas burner with contactless IR sensor. Suitable for all flame-based applications in the laboratory. The low housing enables convenient working; the streamlined design reduces disruption to the airflow of a cleanroom workbench. The Fuego SCS can optionally be operated with a foot pedal, button function or contactless IR sensor. Made of stainless steel, with fire-resistant controls. With DoubleClick IR sensor, button function or foot pedal. (Foot pedal optional). Double Click IR sensor: The activatable Double-Click safety function starts the burner only when the IR sensor is activated twice, adjustable IR sensor range: 5 to 50 mm. New: Illuminated graphic display: animated, self-explanatory and language-free. Facilitates the quick selection of all functions. 6 programs with burner time display: adjustable from 1 s to 2 h. New: The first safety laboratory gas burner with comfort package: -Cooling time reminder for inoculating loops -Temperature control for heating media -Gas consumption display for gas cartridges -Flexible and individual through user selection -Acoustic signals for support Neu: Additional safety assistants: -Zero-Pressure shut-off for a gas hose without pressure when work is finished. -Graphical installation instructions for trouble-free commissioning. - SCS Safety Control System with gas safety shut-off: ignition, flame and temperature monitoring, automatic device shut-off, residual heat display, burner head installation monitoring. - BHC burner head monitoring. - Removable burner head. - Tilt adjustment right / left. - Turbo flame. - Holder for 3 inoculating loop holders. - Nozzles for natural gas, propane / butane gas. - Dimensions (W x H x D): 103 x 49 x 130 mm. - Tested by DIN-DVGW, test mark NG 2211 AS1067. - Warranty: 2 years. Scope of delivery: Fuego SCS with IR sensor, button function and graphic display 6 standard programs for IR sensor, button function, foot pedal and temperature control DoubleClick IR sensor (activatable) SCS (Safety Control System) with BHC (Burner Head Control) Removable and disassemblable burner head Tilt adjustment right / left Holder for 3 inoculating loop holders Nozzles for natural gas, propane / butane gas Adjustable IR sensor range and DoubleClick time Turbo flame Cleaning flap for burner shaft Multifunctional wrench for gas connection Screwdriver for burner head and burner shaft cover Hose nozzle with union nut Switching power supply (worldwide) Operating instructions and 2-year warranty
