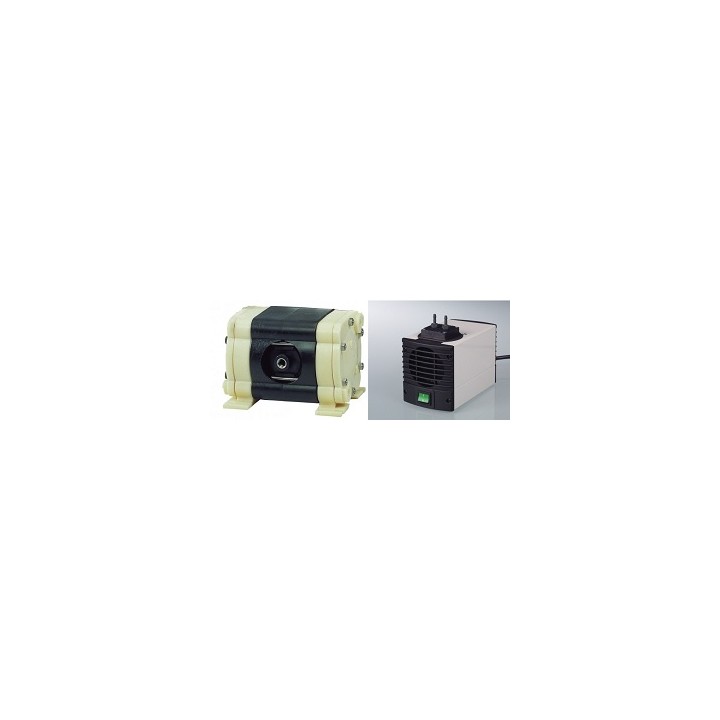

N842.3FT.18 Diaphragm Vacuum Pump | Hornik

N842.3FT.18 diaphragm vacuum pump, PTFE, 2.04 m³/h, 2 mbar, aggressive gases/vapours

€3,581.38
VAT excluded
N842.3FT.18 diaphragm vacuum pump, PTFE, 2.04 m³/h, 2 mbar, aggressive gases/vapours

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

Diaphragm vacuum pump N 842.3 FT.18 - flow rate 2.04 m³/h / ultimate vacuum 2 mbar abs. - High resistance to vapour and condensate - PTFE pump head combined with PTFE-coated diaphragm are ideal for very aggressive/corrosive gases and vapours Technical data Application Rotary evaporation, distillation Flow rate (m³/h) at atmospheric pressure 2.04 Ultimate vacuum (mbar abs.) 2 Operating overpressure (bar) 1 Hose connections (mm) ID10 Permissible media and ambient temperature +5 ... +40 °C Weight (kg) 13.4 Dimensions W x H x D (mm) 167 x 223 x 341 Pump head material PTFE Diaphragm PTFE-coated Valves FFPM Accessories (optional): Vacuum chemical hose 028187 Noise damper 056366 (installation using a hose on the outlet side)

  • Reference
    9983666
