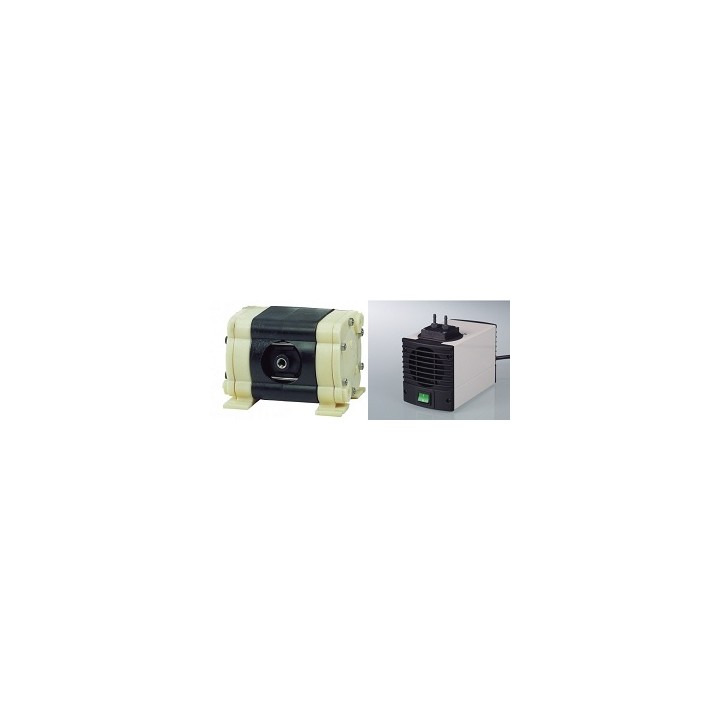

Membrane pump LIQUIPORT NF 100 TT.18 S | Hornik

Membrane liquid pump LIQUIPORT NF 100 TT.18 S, PVDF/PTFE/FFKM, 0.2–1.3 l/min, 10 mWS

€902.55
VAT excluded
Membrane liquid pump LIQUIPORT NF 100 TT.18 S, PVDF/PTFE/FFKM, 0.2–1.3 l/min, 10 mWS

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

Membrane liquid pump LIQUIPORT® NF 100 TT.18 S - Flow rate of 0.2 - 1.3 l/min / pressure head 10 mWS, suction head 3 mWS - Self-priming, dry-running safe - Pump head made of PVDF - Diaphragm made of PTFE, valves made of FFKM - Pressure head also available for 60 mWS on request - Flow rate manually adjustable (version S) Technical data Application Pumping liquids Flow rate (l/min) with water at 20 °C at zero pressure head 0.2 - 1.3 Pressure head (mWS) 10 Suction head (mWS) 3 Hose connection (mm) ID8 Permitted media and ambient temperature Ambient temperature +5 ... +40 °C Media temperature +5 ... +80 °C Weight (kg) 1.0 Dimensions W x H x D (mm) 99 x 177 x 130 Pump head material PVDF Diaphragm PTFE Valves FFKM Accessories Stand mounting Order No. 160474 Wall mounting Order No. 160473 Accessories (optional): Hose (PE material) 007857 Hose (PTFE material) 007858

  • Reference
    9983681
