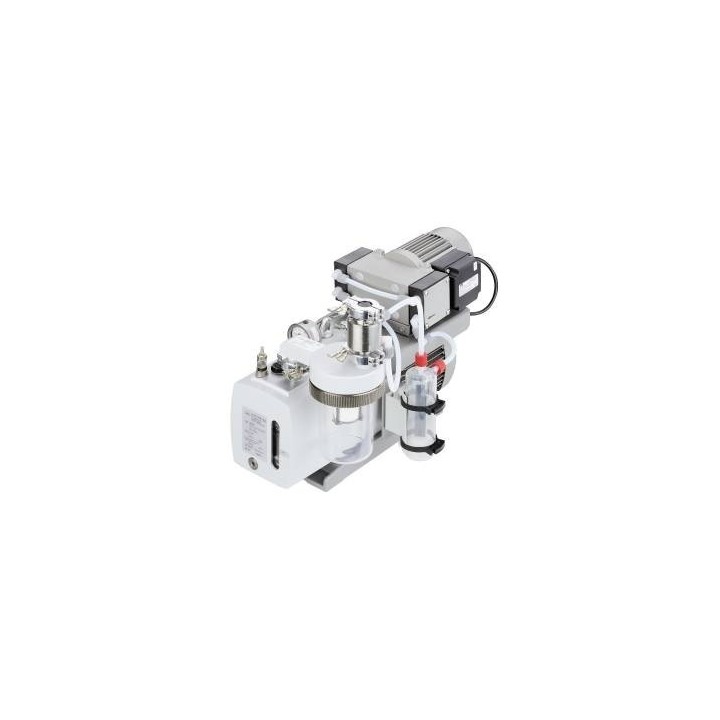

LABOPORT N938.50KT.18 mini-membrane vacuum pump, 1.8 m³/h, 15 mbar, PTFE

€1,532.75
VAT excluded
LABOPORT N938.50KT.18 mini-membrane vacuum pump, 1.8 m³/h, 15 mbar, PTFE

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

Mini-membrane vacuum pump N 938.50 KT.18 - Flow rate 1.8 m³/h / ultimate vacuum 15 mbar abs. - Parallel and series connection of the two pump heads ensures very fast evacuation - PTFE-coated diaphragm for aggressive/corrosive gases and vapours Technical data Application Filtration, SPE, degassing Flow rate (m³/h) at atm. pressure 1.8 Ultimate vacuum (mbar abs.) 15 Operating overpressure (bar) 0.5 Hose connections (mm) ID10 Permissible media and ambient temperature +5 ... +40 °C Weight (kg) 6.8 Dimensions W x H x D (mm) 110 x 212 x 317 Pump head material PPS Diaphragm PTFE-coated Valves FFPM Accessories Silencer Order No. 007006 Hose nipple G1/8 ID10 PVDF Order No. 112004 Fine adjustment valve with vacuum meter, on the suction side, for adjusting the vacuum Order No. 112432 Accessories (optional): Vacuum chemical hose 028187 Silencer 056366 (mounted using a hose on the outlet side)

  • Reference
    9983667
