SBC860.40 Vacuum System – 3.6 m³/h | Hornik

Vacuum system SBC860.40 – central vacuum supply, flow rate 3.6 m³/h, 4 mbar end vacuum

€8,145.83
VAT excluded
Vacuum system SBC860.40 – central vacuum supply, flow rate 3.6 m³/h, 4 mbar end vacuum

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

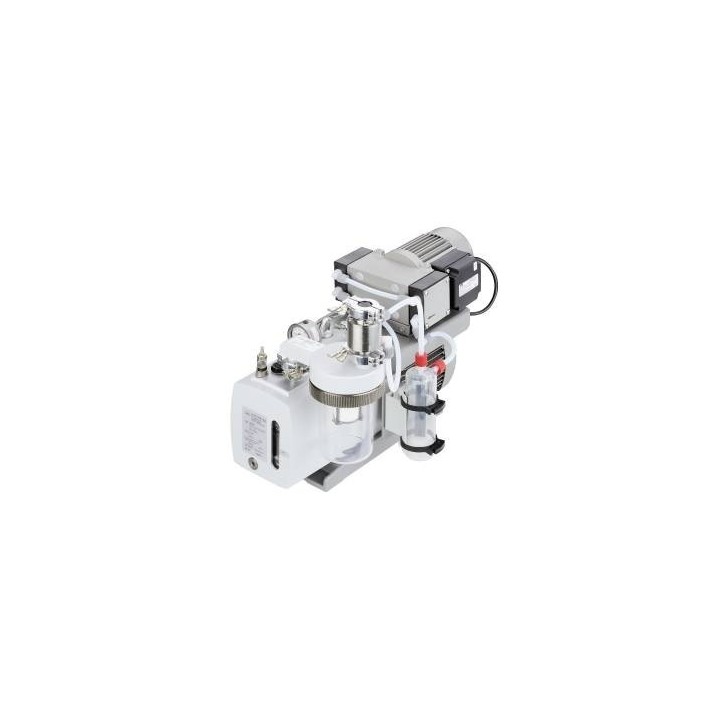

Vacuum system SBC 860.40 - flow rate 3.6 m³/h / end vacuum 4 mbar abs. - For up to ten users - Fully automatic vacuum generation system consisting of a chemical-resistant diaphragm vacuum pump, base plate, high-performance condenser, separator, vacuum controller, valves and control unit Technical data Application Central vacuum supply Flow rate (m³/h) at atm. pressure 3.6 End vacuum (mbar abs.) 4 Operating overpressure (bar) 1 Hose connections (mm) ID10 Permissible media and ambient temperature +5 ... +40 °C Weight (kg) 25.3 Dimensions W x H x D (mm) 314 x 552 x 437 Pump head material PTFE Diaphragm PTFE-coated Valves FFPM Accessories Coolant valve - G1/2 ID8 Order no. 045075 Gas washing bottle 0.5 l Order no. 045886 Regulating valves - unregulated for Order no. 118366 Fume cupboards (PE-HD) Order no. 118364 Vacuum extraction point - unregulated for installation (PPS) Order no. 118362 Mobile controller unit for regulated vacuum extraction (chemical-resistant) Order no. 048459 Accessories (optional) Vacuum chemical hose ID 10mm (supplied in whole metres): 028187 Vacuum chemical hose ID 6mm (supplied in whole metres): 055535 Small flange (in conjunction with vacuum hose): 045419

  • Reference
    9983659
