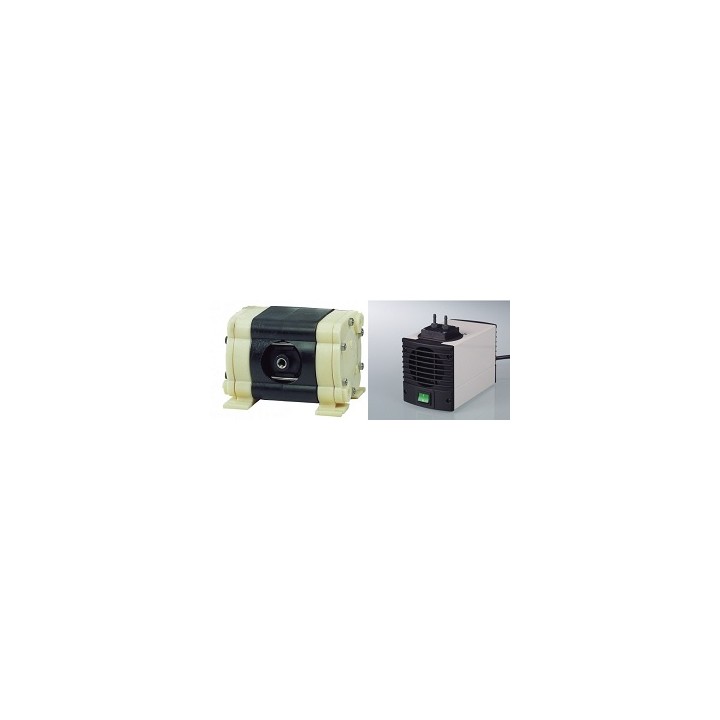

LIQUIPORT NF 1.100 KT.18 S Membrane Pump | Hornik

LIQUIPORT NF 1.100 KT.18 S membrane pump, flow rate 0.2–1.3 l/min, pressure head 60 mWS

€856.83
VAT excluded
LIQUIPORT NF 1.100 KT.18 S membrane pump, flow rate 0.2–1.3 l/min, pressure head 60 mWS

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

LIQUIPORT® NF 1.100 KT.18 S membrane liquid pump - Flow rate of 0.2 - 1.3 l/min / pressure head 60 mWS, suction head 3 mWS - Self-priming, protected against dry running - Pump head made of PP - Diaphragm made of PTFE, valves made of FFKM - Flow rate manually adjustable (version S) Technical data Application Conveying liquids Flow rate (l/min) with water at 20 °C at zero delivery head 0.2 - 1.3 Pressure head (mWS) 60 Suction head (mWS) 3 Hose connection (mm) ID8 Permissible media and ambient temperature Ambient temperature +5 ... +40 °C Media temperature +5 ... +80 °C Weight (kg) 1.0 Dimensions W x H x D (mm) 99 x 177 x 130 Pump head material PP Diaphragm PTFE Valves FFKM Accessories Stand mounting Bestell-Nr. 160474 Wall mounting Bestell-Nr. 160473 Accessories (optional): Hose (PE material) 007857 Hose (PTFE material) 007858

  • Reference
    9983686
