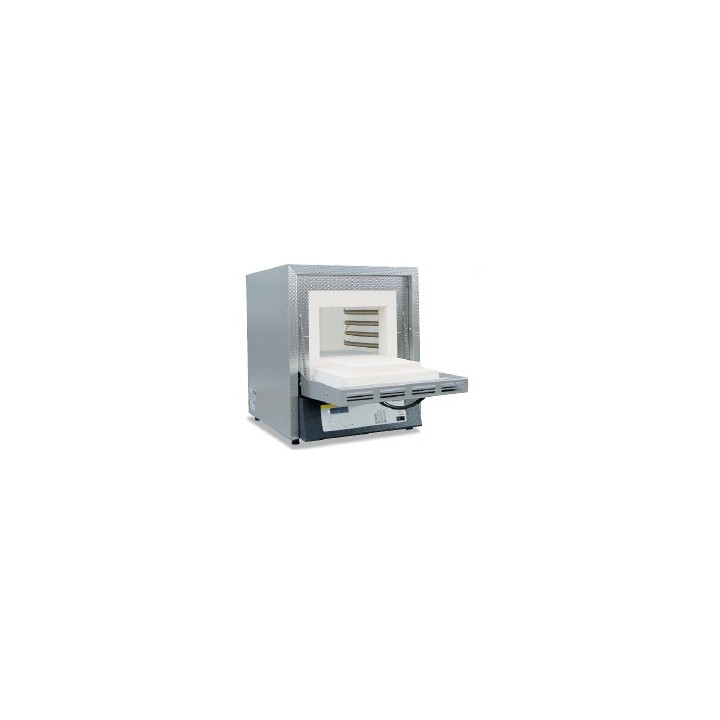

Ashing furnace **LV(T) .. 11** is designed especially for **ashing processes to 1050 °C** in the laboratory. Applications include **determining loss on ignition**, **ashing food and plastics for subsequent substance analysis**. A special **fresh-air and exhaust air system** ensures that the **air is replaced 6 times per minute** so that there is always sufficient oxygen for the ashing process. Incoming air passes the **furnace heating** and is **pre-heated** to ensure **good temperature uniformity**.
**Standard Equipment**
**Tmax 1100 °C**
**Heating from two sides**
**Ceramic heating plates with integral heating element** which is safeguarded, and easy to replace
**Air exchange of more than 6 times per minute**
**Good temperature uniformity** due to preheating of incoming air, temperature uniformity according to **DIN 17052-1 to +/- 10 °C** in the defined empty work area (from 550 °C)
**Dual shell housing** made of textured stainless steel sheets with additional **fan cooling** for low surface temperature
Exclusive use of **insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)**
Suitable for many **standardized ashing processes according to ISO, ASTM, EN, and DIN**
Optional **flap door (LV)** which can be used as **work platform** or **lift door (LVT)** with hot surface facing away from the operator
**Controller with touch operation B510 (5 programs with each 4 segments)**
**Solid state relays** provide for lownoise operation
Defined application within the constraints of the operating instructions
**NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive**
