Thermo-electric circulation thermostat Lauda LOOP L 100, 4 ... 80 °C
Thermo-electric circulation thermostat Lauda LOOP L 100, 4 ... 80 °C

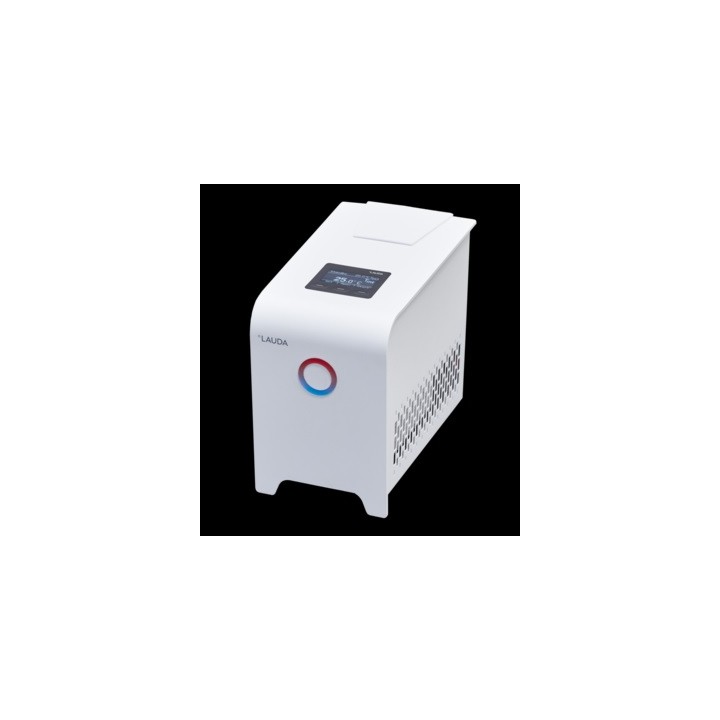

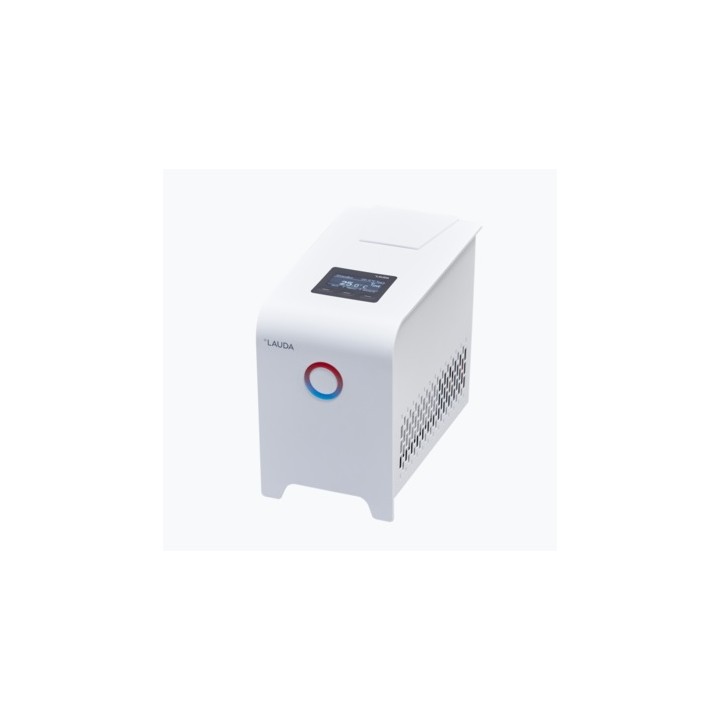

- LAUDA LOOP L 100 thermo-electric circulation thermostat 100-240 V;
- 50/60 Hz Performance features: Circulation thermostat with extremely simple operation and integrated cooling system Bright and high-contrast graphical OLED display User-friendly plain-text menu navigation Simple 3-button operation RS 232 interface Pump connections with quick couplings for simple consumer replacement Operation with non-flammable liquids (water, water/glycol) Quiet and low-vibration operation through refrigerant-free cooling technology Small dimensions and low weight Air-cooled version Technical data (according to DIN 12876): Working temperature range: 4 ... 80 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,1 ± K Heating capacity max.: 0,2 kW In / Outlet connection thread (external): Quick C. 1/43 Filling volume max.: 0,28 L Dimensions (WxDxH): 175 x 301 x 266 mm Weight: 7 kg Protection type: I / NFL Sound pressure level: 57 dB(A) Net weight: 6,5 kg Power consumption max.: 0,24 kW Pump pressure max.: 0,8 bar Pump flow rate max. (pressure): 3 L/min Mains supply: 100-240 V;
- 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Cooling capacity: 20 °C;
- Ethanol;
- 0,12 kW (50 Hz);
- 0,12 kW (60 Hz) 10 °C;
- Ethanol;
- 0,06 kW (50 Hz);
- 0,06 kW (60 Hz)
-
Brand
-
Reference9985387
