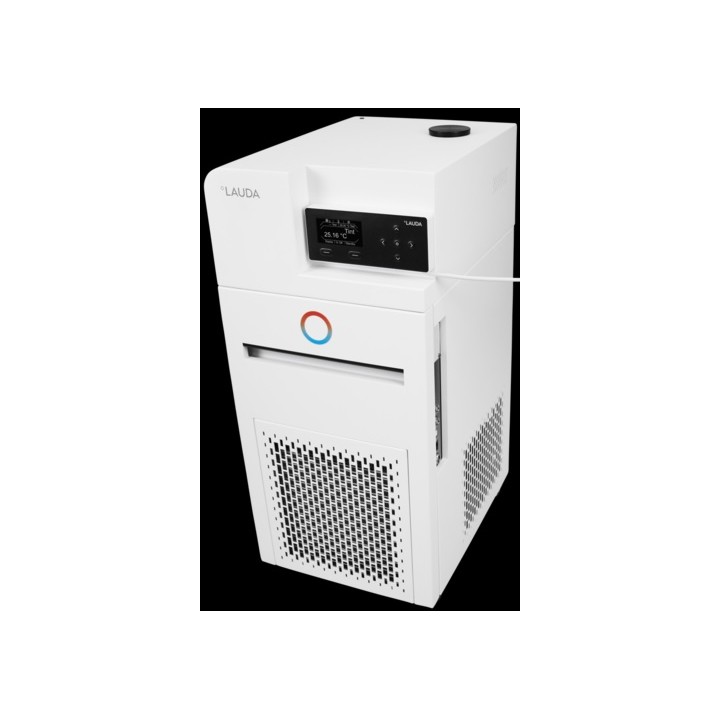

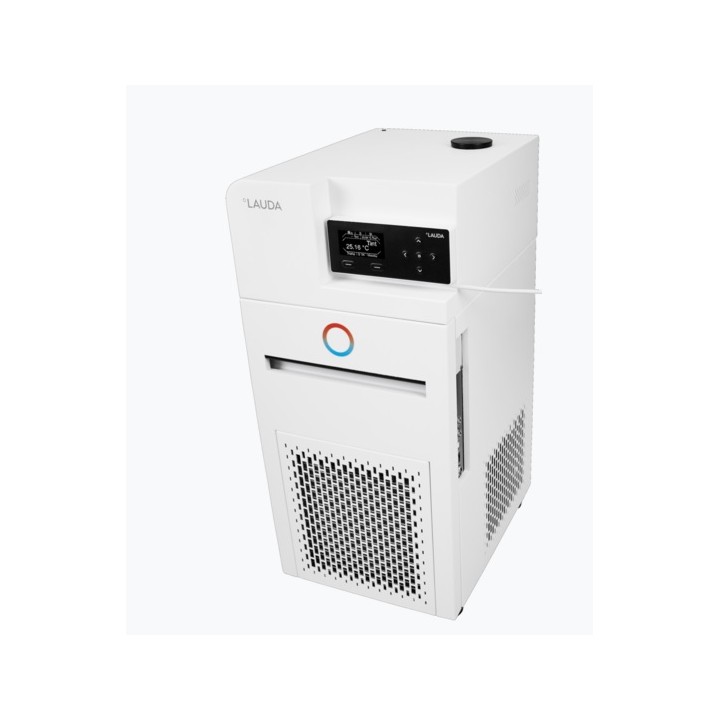

LAUDA PRO RP 245 E cooling-heating circulator, -45 ... 200 °C

LAUDA PRO RP 245 E cooling-heating circulator 230 V; 50 Hz Performance features: Circulator with modern microprocessor technology and integrated cooling system Bright, high-contrast graphical OLED display Integrated programmer, 1 program with max. 20 segments Input via cursor keys and softkeys EasyUse system for simple operation and control of the entire device SelfCheck assistant for system diagnostics Removable control console for remote control Tower design for a small footprint Low filling volume enables rapid temperature changes Stainless steel temperature-control chamber (insulated, with overflow and drain valve) LAUDA Varioflex pump with 8 selectable performance levels, pump connections at the rear USB and Ethernet interfaces fitted as standard Can be retrofitted with an interface module (RS 232/485, Profibus; EtherCAT; analog or contact modules) Fully electronic continuous controller with PID behavior for internal and external control PowerAdapt system for optimally adapted maximum heating output without overloading the power supply Underniveau protection and adjustable overtemperature protection with acoustic alarm for operation with flammable and non-flammable liquids SmartCool system for energy-saving digital cooling control including automatic compressor control Condenser cooling: hybrid cooling Operation with natural refrigerant Technical data (according to DIN 12876): Operating temperature range: -45 ... 200 °C Operating temperature range: -45 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Max. heating output: 2,5 kW Max. power consumption: 3,7 kW Current consumption: 16 A Pump max. pressure: 0,7 bar Pump max. suction: 0,4 bar Pump max. flow rate (pressure): 22 L/min Pump max. flow rate (suction): 20 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet olive diameter: 13 mm Min. filling volume: 2,4 L Max. filling volume: 4,4 L Dimensions (WxDxH): 300 x 430 x 675 mm Weight: 39 kg Refrigerant stage 1: R-290 (GWP 3); 0,120 kg; 0,0 t CO2-eq Power supply: 230 V; 50 Hz Power plug: power cable with angled Schuko plug (CEE7/7) Cooling capacity (pump level): 20 °C (8); Ethanol; 0,8 kW 10 °C (8); Ethanol; 0,8 kW 0 °C (8); Ethanol; 0,8 kW -10 °C (8); Ethanol; 0,53 kW -20 °C (4); Ethanol; 0,34 kW -30 °C (4); Ethanol; 0,15 kW -35 °C (4); Ethanol; 0,09 kW -40 °C (4); Ethanol; 0,04 kW -45 °C (2); Ethanol; 0,01 kW Standard accessories: 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection 2 hose olives 10 mm with union nut G3/8 for cooling-water connection
