LAUDA PRO P 2 EC heating circulating thermostat 80 ... 250 °C images

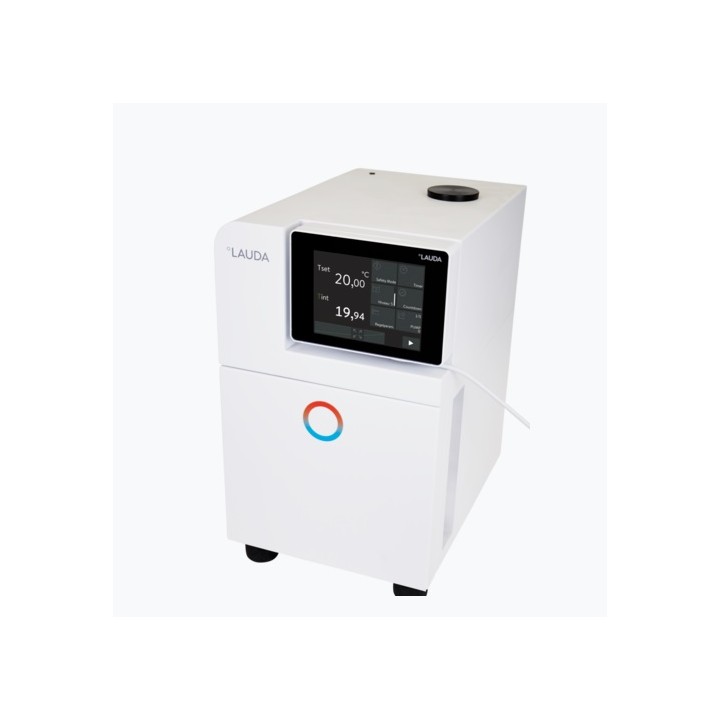

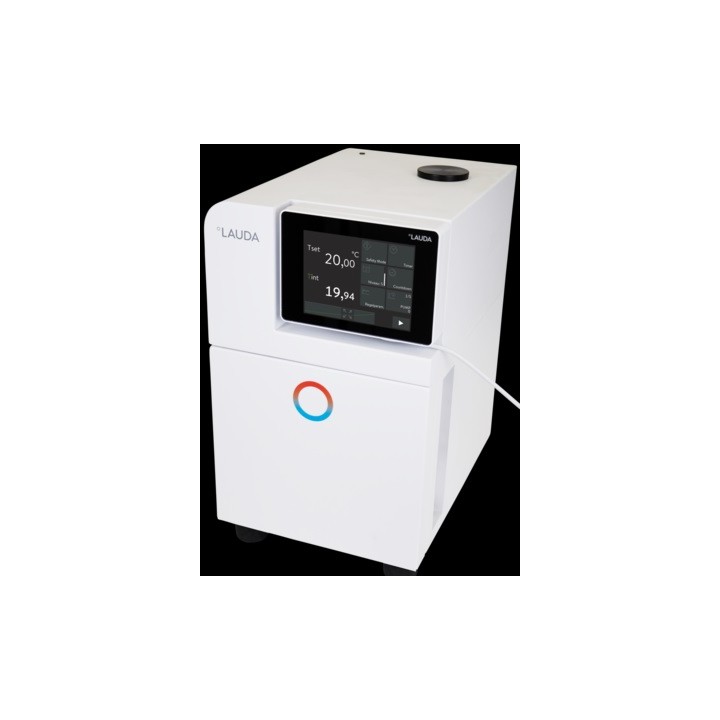

LAUDA PRO P 2 EC heating circulating thermostat 80 ... 250 °C
LAUDA PRO P 2 EC heating circulating thermostat 80 ... 250 °C
- LAUDA PRO P 2 EC heating circulating thermostat 200-230 V;
- 50/60 Hz Performance features: circulating thermostat with state-of-the-art microprocessor technology and integrated cooling coil Large 5.7'' multi-touch colour display Input options via multi-finger gesture recognition Removable control console for remote operation Individual operating rights for up to 20 users Data logging, export to USB stick Timer and count-down function EasyUse system for simple operation and handling of the entire device Underniveau protection and adjustable overtemperature protection with acoustic alarm for operation with flammable and non-flammable liquids SelfCheck assistant for system diagnostics USB and Ethernet interface as standard Can be retrofitted with an interface module (RS 232/485, Profibus;
- EtherCAT;
- analogue or contact modules) Fully electronic continuous controller with PID behaviour for internal and external control PowerAdapt system for optimally adapted maximum heating power without overloading the power supply Programmer with 100 programs with up to 50 segments each Tower design for a small footprint LAUDA Varioflex pump with 8 selectable power levels, pump connections at the rear Low filling volume enables rapid temperature changes Temperature chamber made of stainless steel (insulated, with overflow and drain tap) Technical data (according to DIN 12876): Operating temperature range: 80 ... 250 °C Operating temperature range with water cooling: 20 ... 250 °C Operating temperature range: -30 ... 250 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0.05 ± K Maximum heating power: 2.5 kW Maximum power consumption: 2.7 kW Current consumption: 12 A Pump maximum pressure: 0.7 bar Pump maximum suction: 0.4 bar Pump maximum flow rate (pressure): 22 L/min Pump maximum flow rate (suction): 20 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet olive diameter: 13 mm Minimum filling volume: 2.4 L Maximum filling volume: 4.4 L Dimensions (W x D x H): 250 x 365 x 425 mm Weight: 17 kg Mains supply: 200-230 V;
- 50/60 Hz Mains plug: mains cable with angled Schuko plug (CEE7/7) Standard accessories: 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection 2 hose olives 10 mm with G3/8 union nut for cooling water connection
-
Brand
-
Reference9987871
