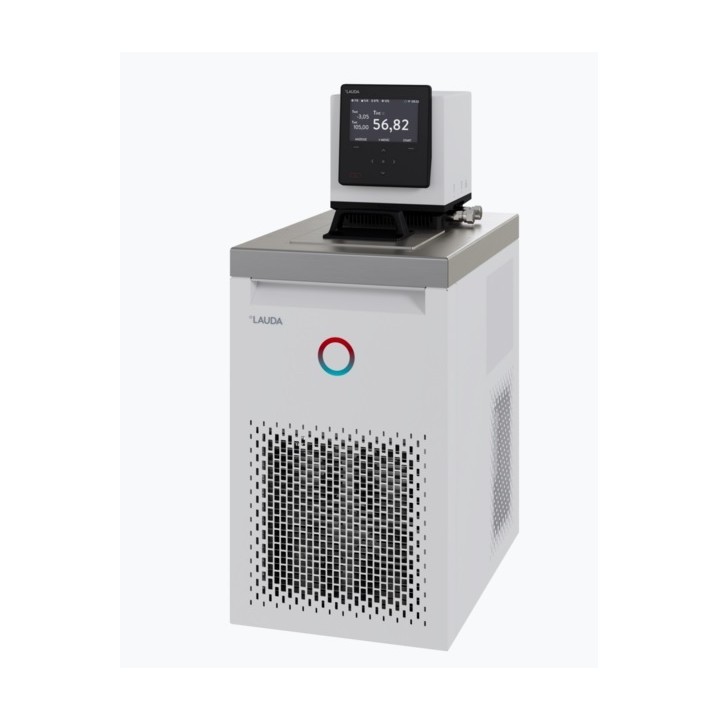

LAUDA Universa U 855 M Refrigerated Thermostat | Hornik
LAUDA Universa U 855 M Refrigerated Thermostat | Hornik

LAUDA Universa U 855 M refrigerated thermostat -55 ... 200 °C, 8 L

Lauda
LAUDA Universa U 855 M refrigerated thermostat -55 ... 200 °C, 8 L

Product images may differ from the original.

Item no.: 9987948

Delivery time: On request

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • LAUDA Universa U 855 M refrigerated thermostat, 200-240 V;
  • 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling base enable flexible adaptation to current and future requirements Clear overview, intuitive operation: The colour 5-inch TFT display simultaneously shows temperature values with trend graphic, offers a clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys.
  • Safety in focus: The dedicated Tmax button enables convenient access to the essential overtemperature protection setting during commissioning.
  • Versatile pressure-suction pump: The LAUDA Varioflex pump, a powerful pressure-suction pump, offers eight selectable power levels, adjustable flow distribution for internal/external circulation for optimum flow rate and pressure. An easily accessible front selector switch on the control head enables adjustment of pump power during operation.
  • Highly efficient refrigeration technology: Combination of speed-controlled inverter compressor and power control using electronic expansion valves as well as speed-controlled fans for improved energy efficiency and reduced operating costs, - increased service life by avoiding frequent on/off cycles, - dynamic approach to the set temperature and - quieter operation.
  • Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling.
  • Adaptive bath rim ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
  • Extensive functionality with programmer, safety mode, calibration options, controller self-adaptation and weekly planner for precise and flexible process control.
  • Intelligent remote control and monitoring: Integrated web server allows flexible remote operation in the company network via the LAUDA Command App or browser, secured by PKI and 2-factor authentication.
  • Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
  • Maximum connectivity: Comprehensive connectivity for almost every application thanks to standard Ethernet, USB and interface for an external Pt100 as well as eleven optional interface modules.
  • Wireless communication: Integrated WLAN enables effortless connection to PC, tablet and smartphone.
  • Comprehensive safety functions: - Effective over- and under-level protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnosis at start-up with alarm and error message display - Smart temperature-control medium management with automatic limit-value adjustment.
  • For reliable operation and improved safety of your valuable samples.
  • Technical data: Operating temperature range: -55 ... 200 °C Operating temperature range: -55 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,01 ± K Heating capacity range: 2.8 ... 3.7 kW Current consumption: 16 A Bath size (WxDxH): 150 x 150 x 200 mm Bath opening (WxD): 150 x 150 mm Bath volume min. / max.: 5,0 / 8,0 L Pump pressure max.: 0,7 bar Pump suction max.: 0,4 bar Pump flow rate max. (pressure): 25 L/min Pump flow rate max. (suction): 23 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet Ø hose olives: 13 mm Dimensions (WxDxH): 310 x 490 x 757 mm Weight: 45 kg Refrigerant stage 1: R-1270 (GWP 3);
  • 0,075 kg;
  • 0,0 t CO2-eq Mains supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Cooling capacity (pump level): 200 °C (8);
  • Thermal oil;
  • 1,6 kW (50 Hz);
  • 1,6 kW (60 Hz) 100 °C (8);
  • Thermal oil;
  • 1,6 kW (50 Hz);
  • 1,6 kW (60 Hz) 20 °C (8);
  • Ethanol;
  • 1,6 kW (50 Hz);
  • 1,6 kW (60 Hz) 10 °C (8);
  • Ethanol;
  • 1,45 kW (50 Hz);
  • 1,45 kW (60 Hz) 0 °C (8);
  • Ethanol;
  • 1,25 kW (50 Hz);
  • 1,25 kW (60 Hz) -10 °C (8);
  • Ethanol;
  • 0,88 kW (50 Hz);
  • 0,88 kW (60 Hz) -20 °C (4);
  • Ethanol;
  • 0,62 kW (50 Hz);
  • 0,62 kW (60 Hz) -30 °C (4);
  • Ethanol;
  • 0,38 kW (50 Hz);
  • 0,38 kW (60 Hz) -40 °C (4);
  • Ethanol;
  • 0,18 kW (50 Hz);
  • 0,18 kW (60 Hz) -50 °C (4);
  • Ethanol;
  • 0,05 kW (50 Hz);
  • 0,05 kW (60 Hz) -55 °C (4);
  • Ethanol;
  • 0,02 kW (50 Hz);
  • 0,02 kW (60 Hz) Standard accessories: 1 bath cover Pump connection set with M16x1 stainless steel connections 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection

  • Brand
  • Reference
    9987948
