LAUDA Universa U 12 M thermostat 70 ... 300 °C | Hornik
LAUDA Universa U 12 M thermostat 70 ... 300 °C | Hornik

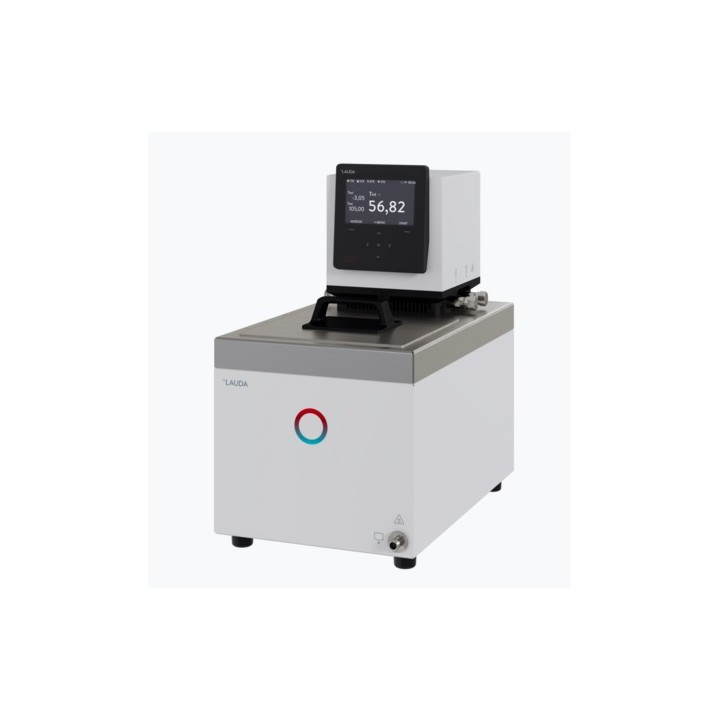

LAUDA Universa U 12 M heating thermostat 70 ... 300 °C 13 L

Lauda
zł23,284.80
VAT excluded
LAUDA Universa U 12 M heating thermostat 70 ... 300 °C 13 L
Please sign in to use quick buy.

Product images may differ from the original.

Item no.: 9987944

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • LAUDA Universa U 12 M heating thermostat, 200-240 V;
  • 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling bath base enable flexible adaptation to current and future requirements Clear overview, intuitive operation: The colour 5-inch TFT display simultaneously shows temperature values with trend graphic, offers clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys.
  • Safety in focus: The dedicated Tmax button enables convenient access to the essential overtemperature protection setting during commissioning.
  • Versatile pressure-suction pump: The LAUDA Varioflex pump, a powerful pressure-suction pump, offers eight selectable performance levels, adjustable flow distribution for internal/external circulation for optimum flow rate and pressure. An easily accessible front switch on the control head enables adjustment of the pump performance during operation.
  • Adaptive bath-rim ventilation (patent pending): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
  • Extensive functionality with programmer, safety mode, calibration options, controller self-adaptation and weekly scheduler for precise and flexible process control.
  • Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
  • Intelligent remote control and monitoring: Integrated web server allows flexible remote operation in the company network via the LAUDA Command app or browser, secured by PKI and 2-factor authentication.
  • Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
  • Maximum connectivity: Comprehensive connectivity for almost any application thanks to standard Ethernet, USB and interface for an external Pt100 plus eleven optional interface modules.
  • Comprehensive safety functions: - Effective overlevel and underlevel protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnosis at start-up with alarm and error message display - Smart temperature-control medium management with automatic limit-value adjustment.
  • For reliable operation and improved safety of your valuable samples.
  • Technical data: Working temperature range: 70 ... 300 °C Working temperature range with water cooling: 20 ... 300 °C Operating temperature range: -30 ... 300 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,01 ± K Heating output range: 2.8 ... 3.7 kW Current consumption: 16 A Bath size (WxDxH): 200 x 200 x 200 mm Bath opening (WxD): 200 x 200 mm Bath volume min. / max.: 8,5 / 13,0 L Pump pressure max.: 0,7 bar Pump suction max.: 0,4 bar Pump flow rate max. (pressure): 25 L/min Pump flow rate max. (suction): 23 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet olive Ø: 13 mm Dimensions (WxDxH): 280 x 450 x 497 mm Weight: 19 kg Power supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: 1 bath cover Pump connection set with M16x1 stainless-steel connections 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection Cooling coil with M16x1 stainless-steel connections and plastic caps

  • Brand
  • Reference
    9987944
