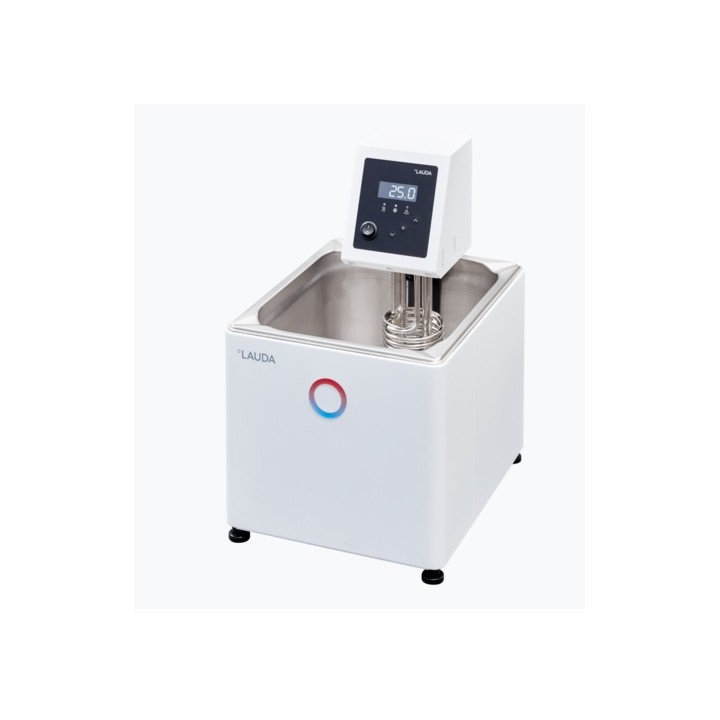

Alpha A 12 Heating Thermostat, 25–100 °C | Hornik
Alpha A 12 Heating Thermostat, 25–100 °C | Hornik

Alpha A 12 heating thermostat 25–100 °C 12 L for forced test heating / cooling thermostat

Lauda
zł6,480.00
VAT excluded
Alpha A 12 heating thermostat, 25 ... 100 °C, 12 L
Please sign in to use quick buy.

Product images may differ from the original.

Item no.: 9016107

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • LAUDA Alpha A 12 heating thermostat 220 V;
  • 60 Hz + 230 V;
  • 50 Hz Features: Bath thermostat with simple operation 1-line LED display for indicating actual or setpoint value User-friendly menu navigation and simple 3-button operation Fully electronic continuous controller Underlevel and overtemperature protection for operation with non-flammable liquids Acoustic and visual alarm message Circulation pump with flow reduction Bath vessel made of deep-drawn stainless steel Optional cooling coil and pump circulation set Technical data (according to DIN 12876): Working temperature range: 25 ... 100 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Heating capacity max.: 1,5 kW Power consumption max.: 1,5 kW Current consumption: 7 A Pump pressure max.: 0,2 bar Pump flow rate max. (pressure): 15 L/min Bath volume min. / max.: 8,0 / 12,0 L Bath size (WxDxH): 235 x 161 x 200 mm Dimensions (WxDxH): 270 x 332 x 420 mm Weight: 8 kg Mains supply: 220 V;
  • 60 Hz / 230 V;
  • 50 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: 1 screw clamp Flow reduction

  • Brand
  • Reference
    9016107
