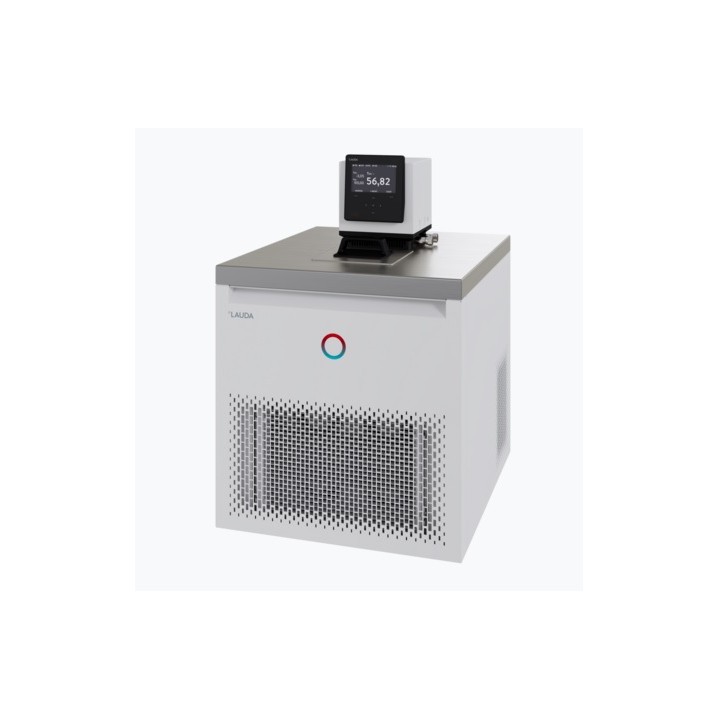

LAUDA Universa U 890 M refrigerated thermostat -90 ... 200 °C, 8 L images
LAUDA Universa U 890 M refrigerated thermostat -90 ... 200 °C, 8 L
LAUDA Universa U 890 M refrigerated thermostat -90 ... 200 °C, 8 L
- LAUDA Universa U 890 M refrigerated thermostat 200-240 V;
- 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy.
- Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling lower section enables flexible adaptation to current and future requirements.
- Clear overview, intuitive operation: The colour 5-inch TFT display simultaneously shows temperature values with trend graph, offers clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys.
- Safety in focus: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.
- Versatile pressure-suction pump: The LAUDA Varioflex pump, a powerful pressure-suction pump, offers eight selectable performance levels, adjustable flow distribution for internal/external circulation for optimum volume flow and pressure. An easily accessible front switch on the control head enables adjustment of pump performance during operation.
- Highly efficient refrigeration technology: Combination of speed-controlled inverter compressor and capacity control using electronic expansion valves as well as speed-controlled fans for improved energy efficiency and reduced operating costs, - extended service life by avoiding frequent switching cycles, - dynamic approach to the set temperature and - quieter operation.
- Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling.
- Adaptive bath rim ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
- Extensive functionality with programmer, safety mode, calibration options, controller self-adaptation and weekly scheduler for precise and flexible process control.
- Intelligent remote control and monitoring: Integrated web server allows flexible remote operation in the company network via the LAUDA Command app or browser, secured by PKI and 2-factor authentication.
- Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
- Maximum networking: Comprehensive connectivity for almost every application thanks to standard Ethernet, USB and interface for an external Pt100 as well as eleven optional interface modules.
- Wireless communication: Integrated WLAN enables easy connection with PC, tablet and smartphone.
- Comprehensive safety functions: - Effective over- and underlevel protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnosis at start-up with alarm and error message display - Smart temperature-control medium management with automatic limit adjustment.
- For reliable operation and improved safety of your valuable samples.
- Technical data: Operating temperature range: -90 ... 200 °C Operating temperature range: -90 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,01 ± K Heating capacity range: 2.8 ... 3.7 kW Current consumption: 16 A Bath size (WxDxH): 150 x 150 x 200 mm Bath opening (WxD): 150 x 150 mm Bath volume min. / max.: 5,0 / 8,0 L Pump pressure max.: 0,7 bar Pump suction max.: 0,4 bar Pump flow rate max. (pressure): 25 L/min Pump flow rate max. (suction): 23 L/min In / Outlet connection thread (external): M16 x 1 In / Outlet olive diameter: 13 mm Dimensions (WxDxH): 525 x 615 x 787 mm Weight: 77 kg Refrigerant stage 1: R-1270 (GWP 3);
- 0,060 kg;
- 0,0 t CO2-eq Refrigerant stage 2: R-170 (GWP 6);
- 0,035 kg;
- 0,0 t CO2-eq Mains supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Cooling capacity (pump level): 200 °C (8);
- thermal oil;
- 0,8 kW (50 Hz);
- 0,8 kW (60 Hz) 100 °C (8);
- thermal oil;
- 0,8 kW (50 Hz);
- 0,8 kW (60 Hz) 20 °C (8);
- ethanol;
- 0,8 kW (50 Hz);
- 0,8 kW (60 Hz) 10 °C (8);
- ethanol;
- 0,78 kW (50 Hz);
- 0,78 kW (60 Hz) 0 °C (8);
- ethanol;
- 0,74 kW (50 Hz);
- 0,74 kW (60 Hz) -10 °C (8);
- ethanol;
- 0,72 kW (50 Hz);
- 0,72 kW (60 Hz) -20 °C (4);
- ethanol;
- 0,72 kW (50 Hz);
- 0,72 kW (60 Hz) -30 °C (4);
- ethanol;
- 0,68 kW (50 Hz);
- 0,68 kW (60 Hz) -40 °C (4);
- ethanol;
- 0,64 kW (50 Hz);
- 0,64 kW (60 Hz) -50 °C (4);
- ethanol;
- 0,6 kW (50 Hz);
- 0,6 kW (60 Hz) -60 °C (4);
- ethanol;
- 0,46 kW (50 Hz);
- 0,46 kW (60 Hz) -70 °C (4);
- ethanol;
- 0,28 kW (50 Hz);
- 0,28 kW (60 Hz) -80 °C (4);
- ethanol;
- 0,12 kW (50 Hz);
- 0,12 kW (60 Hz) -90 °C (4);
- ethanol;
- 0,02 kW (50 Hz);
- 0,02 kW (60 Hz) Standard accessories: 1 bath cover Pump connection set with M16x1 stainless steel connections 2 union nuts, 2 sealing plugs 2 hose olives 13 mm for pump connection
-
