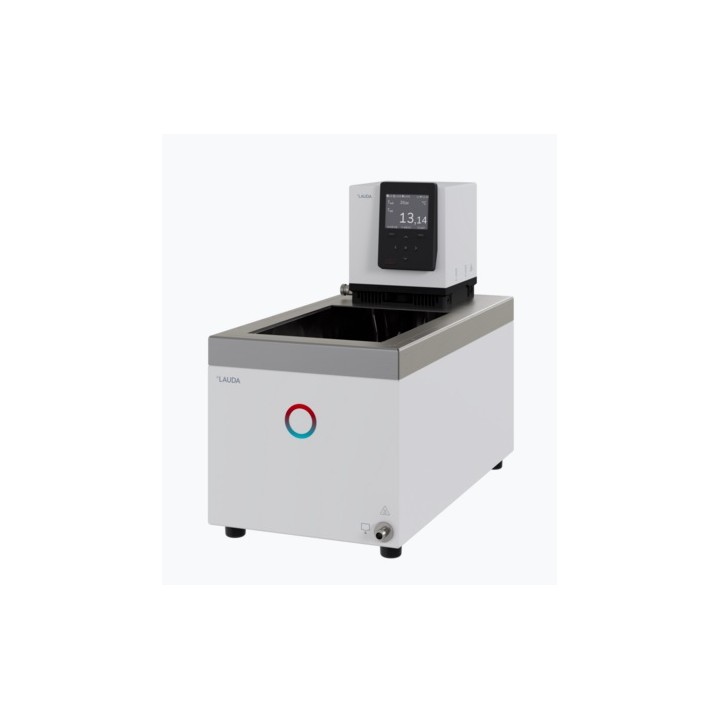

LAUDA Universa U 16 P circulating thermostat, 40 ... 200 °C, 17 L

LAUDA Universa U 16 P circulating thermostat, 200-240 V; 50/60 Hz Performance features: Bath circulating thermostat with advanced electronics ensures precise control accuracy Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling base enable flexible adaptation to current and future requirements Clear overview, intuitive operation: The color 3.5-inch TFT display with trend graphics offers clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys. Safety in focus: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning. Efficient Vario pump with six adjustable performance levels. Flexible flow distribution for internal and external circulation ensures optimum flow rate and pressure. Easily accessible front selector switch on the control head enables pump performance adjustment during ongoing operation. Adaptive bath rim ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect the electronics. To increase operational safety and extend service life. The range of functions includes a programmer, calibration options and weekly scheduler for versatile and precise process control. Intelligent remote control and monitoring: Integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser, secured by PKI and 2-factor authentication. Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance. Flexible networking: Modern connectivity through an Ethernet and USB interface integrated as standard, as well as ten optional interface modules for versatile communication solutions. Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone. Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature-control medium management with automatic limit adjustment. For reliable operation and improved safety of your valuable samples. Technical data: Operating temperature range: 40 ... 200 °C Operating temperature range with water cooling: 20 ... 200 °C Operating temperature range: -30 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0.01 ± K Heating power range: 1.9 ... 2.8 kW Current consumption: 12 A Bath size (WxDxH): 200 x 300 x 200 mm Bath opening (WxD): 200 x 300 mm Bath volume min. / max.: 11.5 / 17.0 L Pump pressure max.: 0.6 bar Pump flow rate max. (pressure): 22 L/min In / Outlet connection thread (external): M16 x 1 Dimensions (WxDxH): 280 x 550 x 476 mm Weight: 18 kg Mains supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: Cooling coil with M16x1 stainless steel connections and plastic caps
