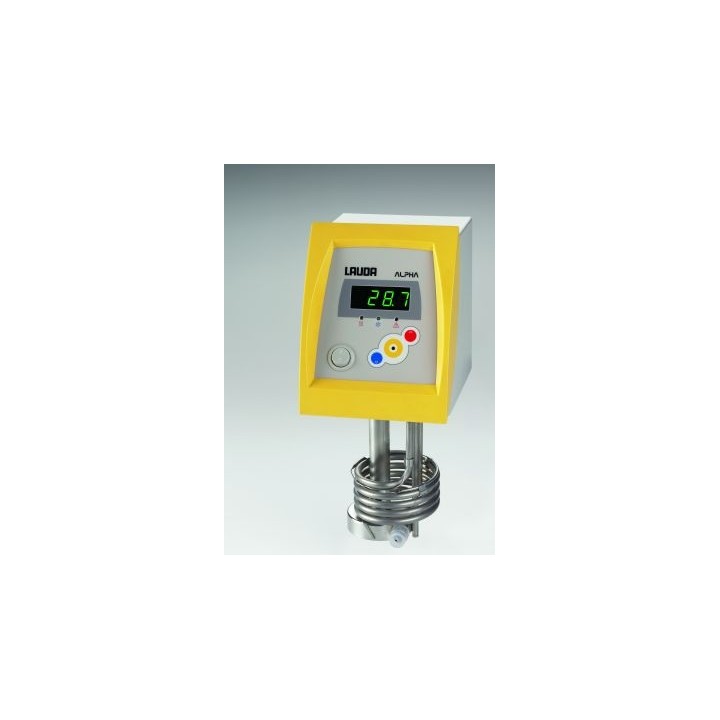

LAUDA Alpha A Immersion Thermostat | Hornik

LAUDA Alpha A immersion thermostat 25…+100 °C

€898.53
VAT excluded
LAUDA Alpha A immersion thermostat 25…+100 °C

Product images may differ from the original.

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +49 2261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

LAUDA Alpha A immersion thermostat 220 V; 60 Hz + 230 V; 50 Hz Performance features: Immersion thermostat with simple operation 1-line LED display for displaying actual or setpoint value User-friendly menu navigation and simple 3-button operation Fully electronic continuous controller Low-level and overtemperature protection for operation with non-flammable liquids Audible and visual alarm message Circulation pump with flow reduction Suitable for baths with a maximum wall thickness of 30 mm and an immersion depth of at least 150 mm Optional cooling coil and pump circulation set Technical data (according to DIN 12876): Operating temperature range: 25 ... 100 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Heating output max.: 1,5 kW Power consumption max.: 1,5 kW Current consumption: 7 A Pump pressure max.: 0,2 bar Pump flow rate max. (pressure): 15 L/min Bath volume min. / max.: max. 50,0 L Dimensions (WxDxH): 125 x 150 x 300 mm Weight: 4 kg Mains supply: 220 V; 60 Hz / 230 V; 50 Hz Mains plug: Mains cable with angled Schuko plug (CEE7/7) Standard accessories: 1 screw clamp

  • Reference
    9016389
