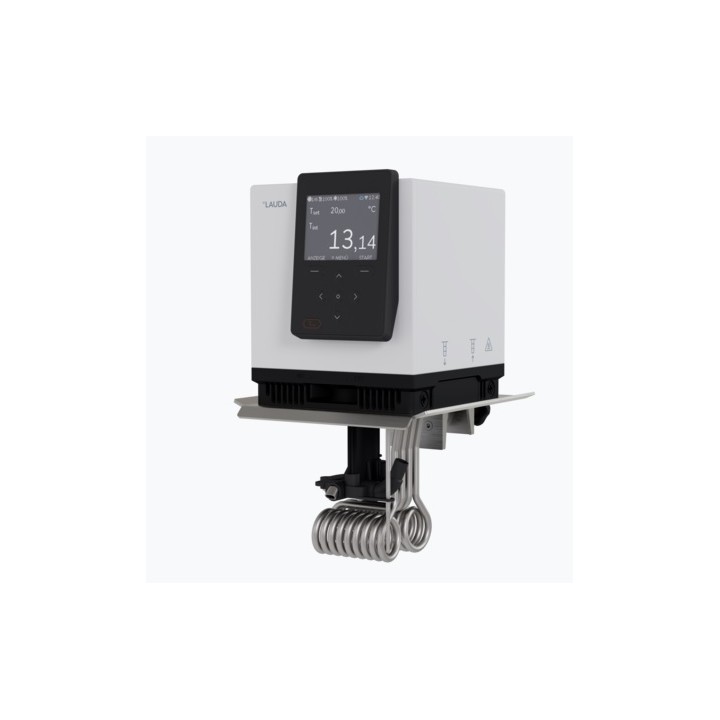

LAUDA Universa PRO immersion thermostat 30 ... 200 °C
Price:
€2,400.00
VAT excluded
LAUDA Universa PRO immersion thermostat 30 ... 200 °C
- LAUDA Universa PRO immersion thermostat 200-240 V;
- 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy.
- Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling base enable flexible adaptation to current and future requirements.
- Clear overview, intuitive operation: The colour 3.5-inch TFT display with trend graphics provides clear menu navigation in six languages and clear operating status symbols, easily controlled via cursor and soft keys.
- Safety in focus: The dedicated Tmax button enables convenient access to the essential overtemperature protection setting during commissioning.
- Efficient Variopump with six adjustable performance levels.
- Flexible flow distribution for internal and external circulation ensures optimum flow rate and pressure.
- Easily accessible front switch on the control head enables adjustment of pump performance during operation.
- Adaptive bath-edge ventilation (patent pending): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
- The range of functions includes a programmer, calibration options and weekly planner for versatile and precise process control.
- Intelligent remote control and monitoring: Integrated web server allows flexible remote operation in the company network via the LAUDA Command App or browser, secured by PKI and 2-factor authentication.
- Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
- Flexible networking: Modern connectivity through an Ethernet and USB interface integrated as standard, as well as ten optional interface modules for versatile communication solutions.
- Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
- Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature-control medium management with automatic limit adjustment.
- For reliable operation and improved safety of your valuable samples.
- Technical data: Operating temperature range: 30 ... 200 °C Operating temperature range with water cooling: 20 ... 200 °C Operating temperature range: -30 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0.02 ± K Heating output range: 1.9 ... 2.8 kW Current consumption: 12 A Pump pressure max.: 0.6 bar Pump flow rate max. (pressure): 22 L/min In / Outlet connection thread (external): M16 x 1 Dimensions (WxDxH): 195 x 234 x 333 mm Weight: 6 kg Mains supply: 200-240 V, 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: 1 screw terminal
-
