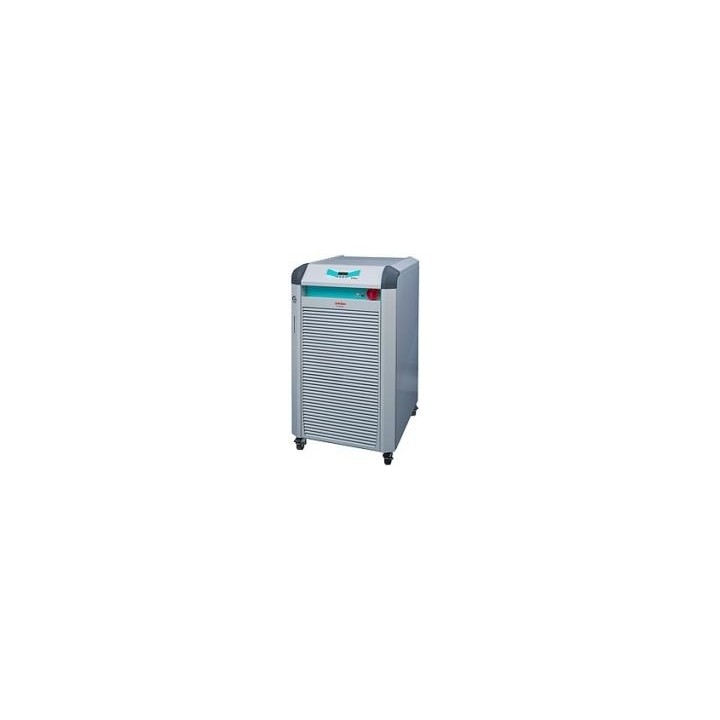

FL4006 recirculating chiller, temperature range -20…+40°C

The mid-range FL recirculating chillers with higher cooling capacity feature powerful circulation pumps. The units are equipped with internal baths with a filling volume of up to 30 litres and are available as air-cooled (FL) or water-cooled (FLW) models. Bath: Stainless steel Pump type: Submersible pump Product features: - Ergonomic design and easy operation - Splash-proof membrane keypads - Large, bright LED temperature display - Reliable microprocessor PID temperature control - Precise PID temperature control - Powerful submersible pumps suitable for continuous operation - Permissible return temperature +80°C - Easy filling from the top through a hinged filling opening - Low-level protection with optical and acoustic signal - Integrated stainless-steel baths - Easily accessible drain tap on the front - No side ventilation slots: units can be placed next to each other - RS232 interface for PC connection - IP class according to IEC 60529: 21 - Alarm output, potential-free changeover contact (max. 30 VA) - Pump pressure display Scope of delivery: 2 hose olives for hose 1'' I.W. (pump connections with G1 1/4 male thread). Cooling capacity: Performance data measured according to DIN 12876. Cooling capacities up to 20 °C measured with ethanol, above 20 °C measured with thermal oil, unless otherwise stated. Performance data apply at an ambient temperature of 20 °C. Performance values may differ with other temperature-control fluids.
