TO8 evolution 4-station olfactometer

Olfasense

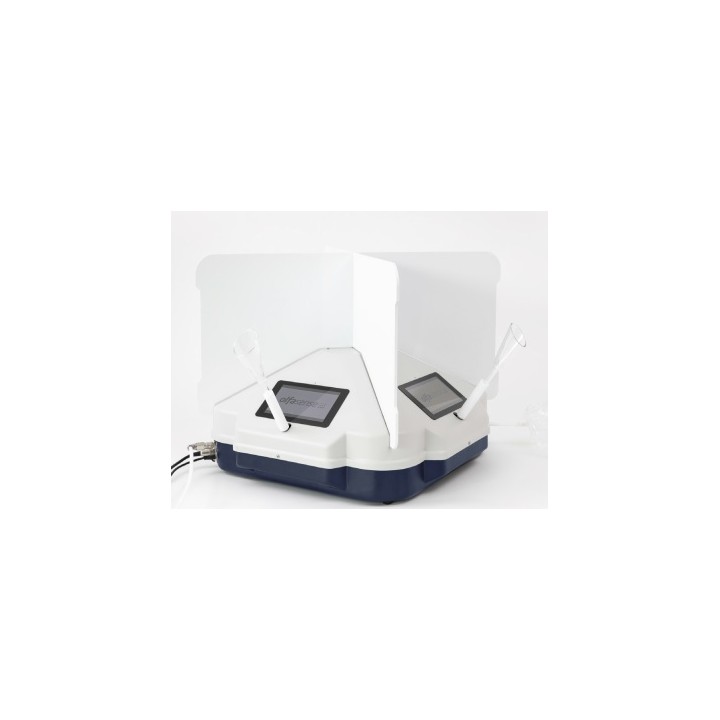

TO8 evolution 4-station olfactometer

Product images may differ from the original.

Item no.: 9002214

Delivery time: On request

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • 4-station, mobile olfactometer with automatic dilution system and software.
  • Fully compliant with the EN 13725: 2003 standard.
  • Supports all relevant international standards:
  • Yes / No (EN 13725: 2003),
  • Forced triangle decision (ASTM 679),
  • Intensity (VDI 3882 Part 1),
  • Hedonic Tone (VDI 3882 Part2).
  • Technical specification:
  • 1.
  • Dilution system:
  • Airflow at the sniffing port > 20 l / min
  • Dilution range: 28 dilution levels from 1: 3,5 to 1: 65 000
  • Dilution level factor Fs 1.4 and 2 (selectable)
  • Display <0,20 and ID <5%
  • Stabilisation time of each dilution level <0,1 sec.
  • Homogeneity of the diluted odour (gas pumps according to the Venturi principle)
  • 2.
  • Sniffing stations:
  • Ergonomically designed sniffing stations with height- and angle-adjustable ports
  • Each sniffing station is equipped with a funnel-shaped glass sniffing port
  • Air velocity at the sniffing port 0,2 m / s
  • Intensity rating from 0 to 5 with intermediate levels: 0 / 0,5 / 1 / 1,5 /.../ 4,5 / 5
  • Hedonic tone rating from -5 to +5: -5 / -4 /.../ 0 / + 1 / + 2 /.../+ 5
  • 3.
  • Hardware and software:
  • Full version of the WiNose LIMS licence, including management of projects, customers, users, samples, sample bags, panellists, reference gas, certificates and olfactometer
  • Controlled by an independent computer via a user-friendly and intuitive interface
  • Manual controls for testing the system (functions, dilution for calibration, etc.)
  • Export to Excel possible
  • Scope of delivery:
  • WiNose-Evolutions-LIMS,
  • Transport case,
  • 20 ready-to-use 10l sample bags,
  • Special calibration certificate according to EN 13725: 2003 and ISO 17025, confirming traceability to national standards.
  • Country of origin: Germany
  • The offer is intended exclusively for businesses.
