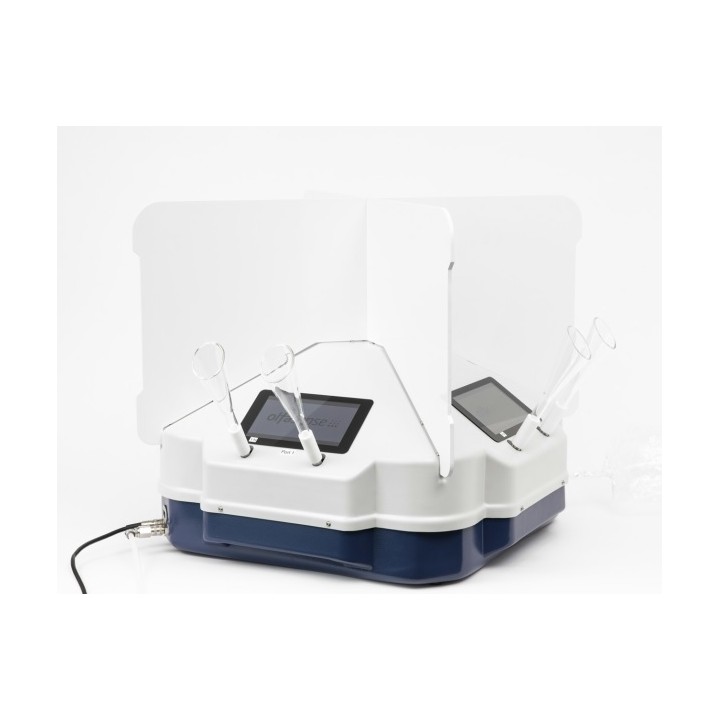

TO9 evolution Olfactometer – 4 Stations | Hornik

TO9 evolution olfactometer

Olfasense
TO9 evolution olfactometer

Product images may differ from the original.

Item no.: 9002227

Delivery time: On request

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • Supports all relevant international standards:
  • Yes / No (EN 13725: 2003),
  • Dual Forced Choice (EN13725: 2003),
  • Forced triangle test (ASTM 679),
  • Intensity (VDI 3882 Part 1),
  • Hedonics (VDI 3882 Part2).
  • Technical specification:
  • 1.
  • Dilution system:
  • Volumetric flow at the sniffing port > 20 l / min
  • Dilution range: 28 dilution levels from 1: 3,5 to 1: 65 000 (Yes / No and forced triangle test) and from 1: 7 to 1: 130 000 (Dual Forced Choice)
  • Step factors Fs 1.4 and 2 (selectable)
  • Display <0,20 and Id <5%
  • Stabilisation time for each dilution <0,1 sec.
  • Homogeneity of the diluted odour (gas pumps according to the Venturi principle)
  • 2.
  • Sniffing stations:
  • Ergonomically designed sniffing stations with height- and angle-adjustable ports
  • Each sniffing station is equipped with 2 funnel-shaped glass sniffing ports
  • Air velocity at the sniffing port 0,2 m/s
  • Intensity rating from 0 to 5 with intermediate levels: 0 / 0,5 / 1 / 1,5 /.../ 4,5 / 5
  • Hedonic rating from -5 to +5: -5 / -4 /.../ 0 / + 1 / + 2 /.../+ 5
  • 3.
  • Hardware and software:
  • Complete WiNose LIMS licence version including project, customer, user, sample, sample bag,
  • panelist, reference gas management, certificate and olfactometer
  • Controlled by an independent computer via a user-friendly and intuitive interface
  • Manual controls for testing the system (functionalities, dilutions for calibration, etc.)
  • Export to Excel possible
  • Scope of delivery:
  • WiNose Evolution LIMS,
  • Transport case,
  • 20 ready-to-use 10l sample bags,
  • A special calibration certificate according to EN 13725: 2003 and according to ISO 17025, confirming traceability to national standards.
  • Country of origin: Germany
  • Offer only for business customers.

  • Brand
  • Reference
    9002227
