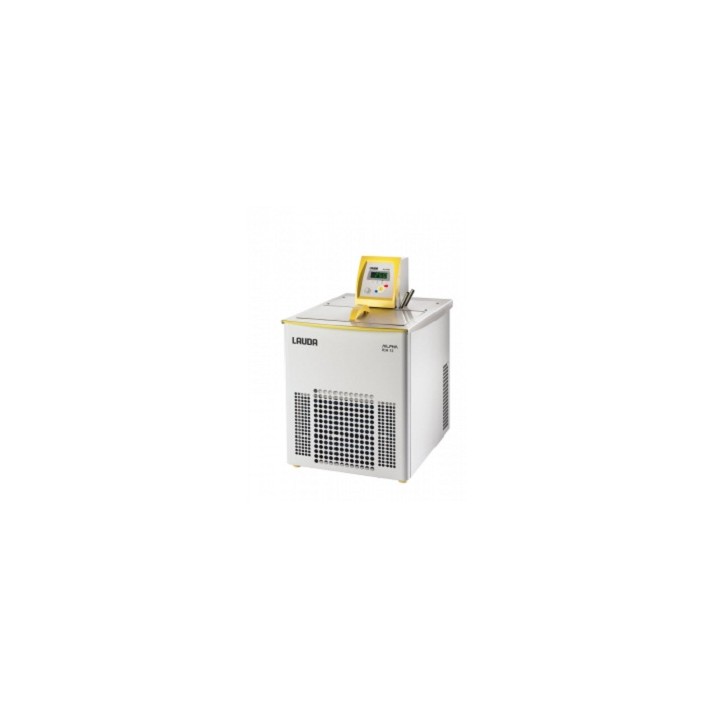

Chiller thermostat Alpha RA 12 -25…100 °C 220 V 60 Hz + 230 V 50 Hz

LAUDA Alpha RA 12 chiller thermostat 220 V; 60 Hz + 230 V; 50 Hz Features: bath/circulation thermostat with extremely simple operation and integrated cooling system 1-line LED display for showing actual or setpoint value User-friendly menu navigation and extremely simple 3-button operation Fully electronic continuous controller Low-level and overtemperature protection for operation with non-flammable liquids Audible and visual alarm message Circulation pump with flow reduction Stainless steel bath vessel Cooling by intelligent energy-saving automation (automatic compressor control) Condenser cooling Air Drain connection at the rear Operation with non-flammable refrigerant (HFC), compliant with the F-Gas Regulation Regulation (EU) 573/2024 Technical data (according to DIN 12876): Working temperature range: -25 ... 100 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Heating capacity max.: 1,5 kW Power consumption max.: 1,8 kW Current consumption: 8 A Pump pressure max.: 0,2 bar Pump flow rate max. (pressure): 15 L/min Bath volume min. / max.: 9,5 / 14,5 L Bath size (WxDxH): 300 x 203 x 160 mm Dimensions (WxDxH): 365 x 500 x 605 mm Weight: 37 kg Refrigerant stage 1: R-134a (GWP 1430); 0,130 kg; 0,2 t CO2-eq Mains supply: 220 V; 60 Hz / 230 V; 50 Hz Mains plug: power cable with angled Schuko plug (CEE7/7) Cooling capacity: 20 °C; Ethanol; 0,325 kW 0 °C; Ethanol; 0,26 kW -20 °C; Ethanol; 0,08 kW Standard accessories: 1 bath cover Pump connection set Short-circuit hose for pump connections
