Stainless Steel Barrel Pump 570 mm | Hornik

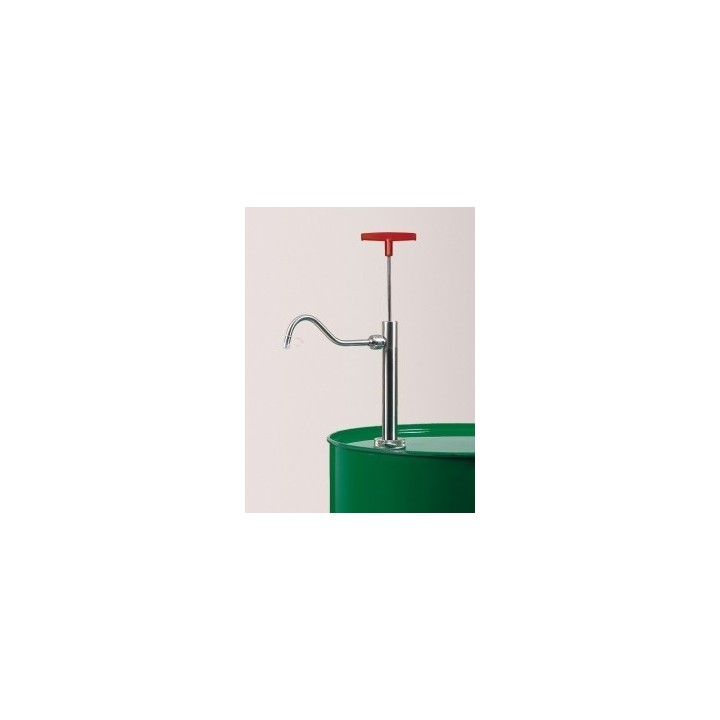

Stainless steel barrel pump, discharge elbow, 570 mm immersion depth, 690 mm total length

Bürkle
zł1,169.55
VAT excluded
Stainless steel barrel pump, discharge elbow, 570 mm immersion depth, 690 mm total length
Please sign in to use quick buy.

Product images may differ from the original.

Item no.: 9031009

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • This stainless steel barrel pump has a fixed discharge elbow for the precise and safe dispensing of liquids.
  • The discharge angle made of robust stainless steel directs the liquid in a targeted and controlled manner, preventing spills and splashes.
  • For use in demanding environments, the stainless steel barrel pump with discharge elbow is particularly durable and easy to clean.
  • The stainless steel barrel pumps are powerful and versatile piston pumps for transferring flammable or aggressive liquids and chemicals.
  • Due to their electrical conductivity, the pumps are ideal for slightly flammable or combustible liquids.
  • They were specially developed for use in zones 0 and 1 (explosion groups II A and II B) and have been tested by DEKRA.
  • When used for flammable media, the pumps must be grounded.
  • The PTFE seals not only guarantee high chemical resistance but also excellent sliding properties during the pumping process.
  • Stainless steel barrel pumps are very flexible and versatile.
  • They are ideally suited for a wide range of barrels, containers or other vessels (approx. 60 to 1000 l capacity, up to 91 cm depth), making them true all-rounders in workshops or production.
  • Compared with conventional solvent pumps for highly flammable liquids, our stainless steel barrel pumps offer excellent value for money.
  • The durable and robust barrel pumps made of high-quality, corrosion-resistant stainless steel (1.4301) guarantee a long service life, especially in damp or aggressive environments.
  • Container pump for the precise dispensing of flammable liquids Ideal for slightly flammable or aggressive liquids Meets the highest safety standards Economical and durable For precise and safe dispensing The stainless steel barrel pumps are electrically conductive and resistant to a wide range of chemicals, enabling the safe and efficient transfer or dosing of liquids in the chemical, pharmaceutical or food industries.
  • Screw on the discharge elbow.
  • Insert the barrel pump with barrel fitting (accessory) into the barrel and tighten it hand-tight.
  • Adjust the riser tube height if necessary.
  • Place the filling container under the discharge elbow.
  • Pull the cap off the discharge elbow.
  • Operate the piston rod with the handle and dispense the liquid.
  • During the final pump stroke, push the piston rod into the pump as far as it will go.
  • Carefully unscrew the pump from the barrel.
  • Rinse the barrel pump with a pH-neutral liquid.

  • Brand
  • Reference
    9031009

  • Material
    Stainless steel
