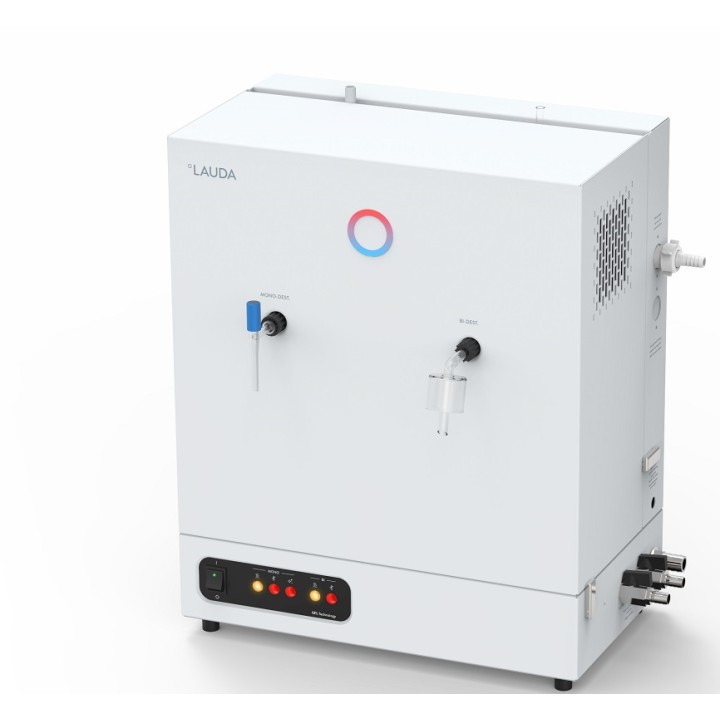

LAUDA Puridest PD 4 G water distiller 230 V; 50/60 Hz Performance features: glass mono-distiller (fully automatic), suitable for wall mounting and bench-top installation Distillate removal on the right side of the unit via hose connection Distillation flasks, condensers and overflows DURAN® / borosilicate glass 3.3. Condensers with droplet-repellent vapour guidance Sterilisation of the condensers by steaming Solenoid valve for controlling the water supply Energy savings through distillation of the heated cooling water Water savings through automatic switch-off. Unnecessary water consumption is avoided Visible operation through non-fogging, shatterproof and easily removable front pane CO2 degassing opening on the condenser Electronic level monitoring throughout the entire distillation process Monitoring of the water level in the evaporator with automatic power cut-off in case of water shortage Electronic dirt monitor triggers automatic water replacement for flushing and cleaning the evaporator Heating elements with quartz glass sheathing Housing made of galvanised sheet steel, powder-coated Technical data: Conductivity of mono-distillate at 25°C: 2.2 µS/cm Production capacity: 4 L/h Max. heating capacity: 3 kW Max. power consumption: 3 kW Cooling water consumption: 1.2 L/min Minimum cooling water pressure difference: 3 bar Maximum cooling water pressure: 7 bar Water cooling inlet for hose: 1/2 '' Water cooling outlet for hose: 1/2 '' Dimensions (WxDxH): 650 x 200 x 390 mm Weight: 16 kg Ambient temperature range: 10 ... 40 °C Mains supply: 230 V; 50/60 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7)
