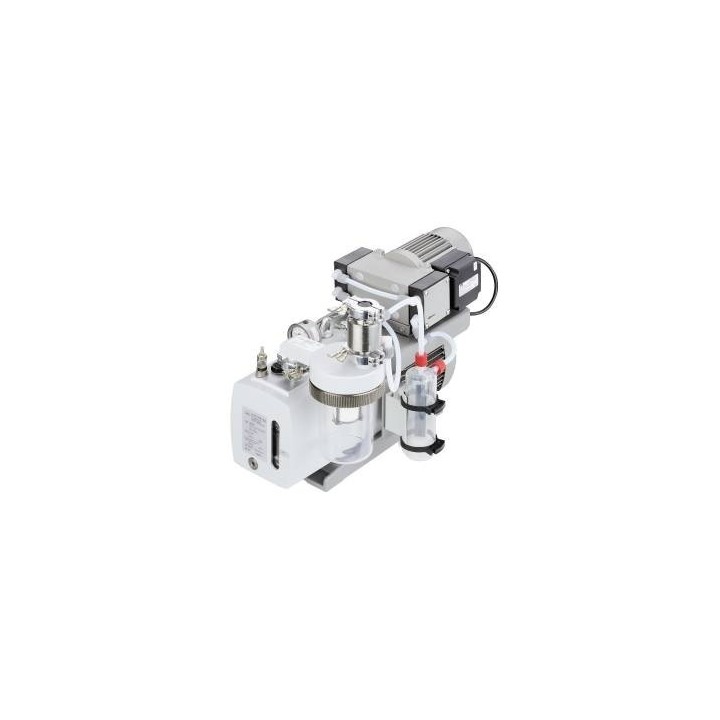

Vacuum system SBC840.40 – flow rate 2.04 m³/h, ultimate vacuum 10 mbar, for up to 10 users images
Vacuum system SBC840.40 – flow rate 2.04 m³/h, ultimate vacuum 10 mbar, for up to 10 users
Price:
zł29,633.63
VAT excluded
Vacuum system SBC840.40 – flow rate 2.04 m³/h, ultimate vacuum 10 mbar, for up to 10 users
- Vacuum system SBC 840.40 - flow rate 2.04 m³/h / ultimate vacuum 10 mbar abs. - For up to ten users - Fully automatic vacuum generation system consisting of a chemical-resistant diaphragm vacuum pump, base plate, high-performance condenser, separator, vacuum controller, valves and control unit Technical data Application Central vacuum supply Flow rate (m³/h) at atmospheric pressure 2.04 Ultimate vacuum (mbar abs.) 10 Operating overpressure (bar) 1 Hose connections (mm) ID10 Permissible media and ambient temperature +5 ... +40 °C Weight (kg) 22.9 Dimensions W x H x D (mm) 322 x 515 x 450 Pump head material PTFE Diaphragm PTFE-coated Valves FFPM Accessories Coolant valve - G1/2 ID8 Order no. 045075 Gas washing bottle 0.5 l Order no. 045886 Regulating valves - unregulated for Order no. 118366 Fume cupboards (PE-HD) Order no. 118364 Vacuum take-off point - unregulated for installation (PPS) Order no. 118362 Mobile controller unit for regulated vacuum extraction (chemical-resistant) Order no. 048459 Accessories (optional) Vacuum chemical hose ID 10mm (supplied in whole metres): 028187 Vacuum chemical hose ID 6mm (supplied in whole metres): 055535 Small flange (in conjunction with vacuum hose): 045419
-
Brand
-
Reference9983660
