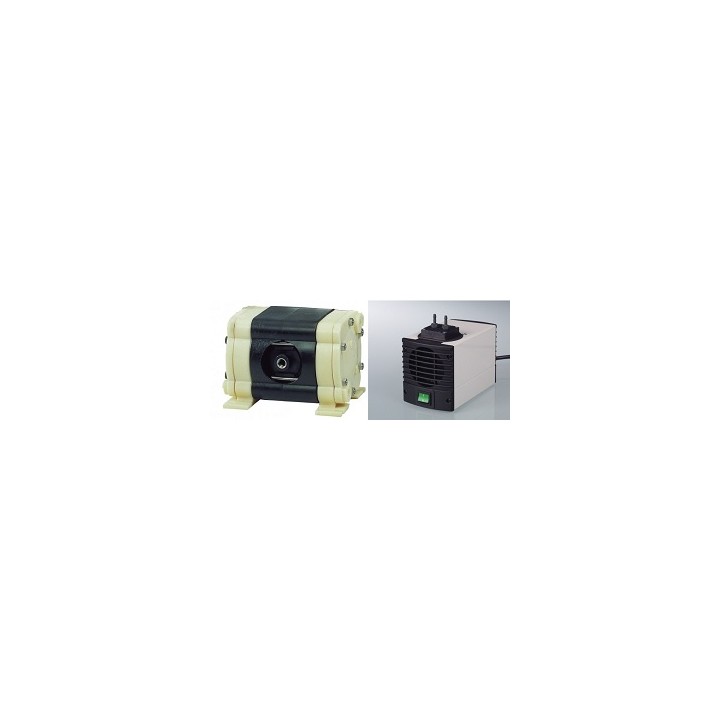

SIMDOS 10 FEM1.10FT.18S PTFE diaphragm dosing pump

Chemical-resistant diaphragm dosing pump SIMDOS® 10 FT.18 S2 - flow rate of 1 - 100 ml/min / pressure head 60 mWS, suction head 3 mWS - pump head made of PTFE - diaphragm made of PTFE, valves made of FFKM - flow rate manually adjustable (version S) - additional safety diaphragm for maximum protection - easy replacement of the diaphragm by activating the maintenance command stored in the operating program Technical data Application Dosing liquids Flow rate (ml/min) with water at 20 °C at zero pressure head 1 - 100 Pressure head (mWS) 60 Suction head (mWS) 3 Tubing connection (mm) ID4 / AD6 Permissible medium and ambient temperature Ambient temperature +5 ... +40 °C Medium temperature +5 ... +80 °C Weight (kg) 0,9 Dimensions W x H x D (mm) 93 x 144 x150 Pump head material PTFE Diaphragm PTFE Valves FFKM Included in delivery: -Dosing pump -Suction filter -2 metres of connection tubing -Power supply Accessories (not included in delivery) Stand mount Order no. 160474 Wall mount Order no. 160473 In-line filter FS 25 T PVDF Mesh size 70 µm Order no. 165211 FS 25 X PEEK Mesh size 35 µm Order no. 165213
