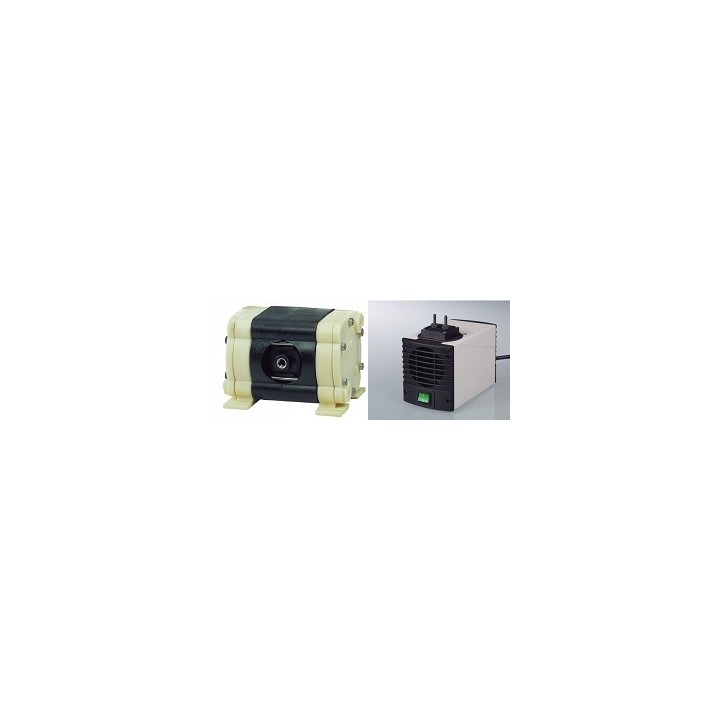

Chemical-resistant membrane vacuum pump N920G - Flow rate 1.26 m³/h, ultimate vacuum 2 mbar images
Chemical-resistant membrane vacuum pump N920G - Flow rate 1.26 m³/h, ultimate vacuum 2 mbar
Price:
zł12,985.11
VAT excluded
Chemical-resistant membrane vacuum pump N920G - Flow rate 1.26 m³/h, ultimate vacuum 2 mbar
- Chemical-resistant membrane vacuum pump Type: N920KT.29.18G - Flow rate 1.26 m³/h / ultimate vacuum 2 mbar abs. - High suction capacity, especially in the lower vacuum range - Integrated speed control enables easy manual adjustment of the pump capacity to the process requirements - PPS pump head combined with PTFE-coated membrane are ideal for aggressive/corrosive gases and vapours - Integrated gas ballast valve Tip: Combined with the VC 900 vacuum controller and control cable, the speed is controlled according to the process requirements Technical data Application Degassing, gel drying, rotary evaporation, distillation, vacuum concentrator Flow rate (m³/h) at atm. pressure 1.26 Ultimate vacuum (mbar abs.) 2 Operating overpressure (bar) 0.5 Hose connections (mm) ID10 Permitted media and media temperature Ambient temperature +5 ... +40 °C Ambient temperature +10 ... +40 °C Weight (kg) 8.5 Dimensions W x H x D (mm) 158 x 226 x 324 Pump head material PPS Membrane PTFE-coated Valves FFPM Accessories Silencer Order no. 007006 Fine regulating valve with vacuum meter, suction side, for regulating the vacuum Order no. 112432 Small flange, stainless steel Order no. 046625 Accessories (optional): Vacuum chemical hose 028187 Silencer 056366 (installed by means of a hose on the outlet side)
-
Brand
-
Reference9983704
Secure B2B procurement
Encrypted data transmission and personal order review.
Delivery after confirmation
Lead time and availability are confirmed during the order or inquiry process.
Returns by prior agreement
B2B returns require prior agreement and follow the applicable contract terms.
