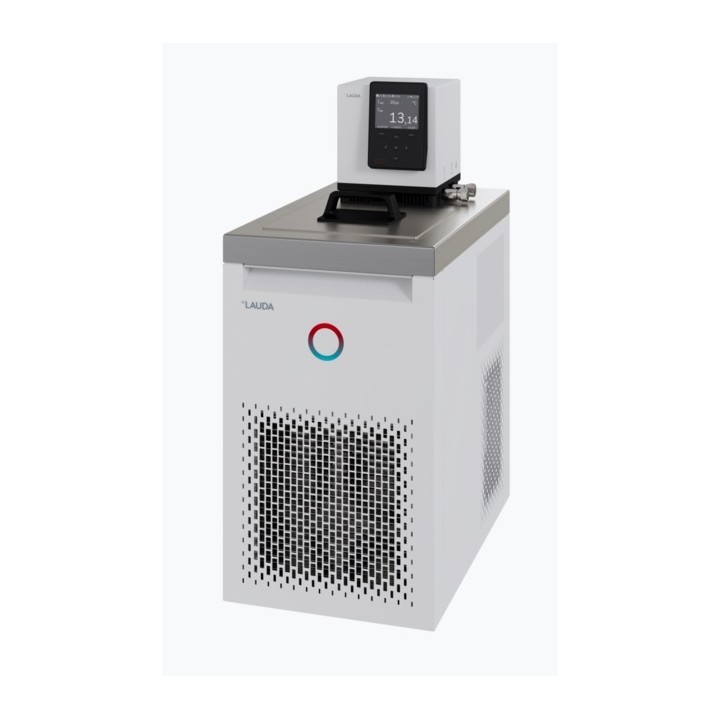

Refrigerated thermostat Lauda Universa U 1635 P -35 ... 200 °C 16,5 L images
Refrigerated thermostat Lauda Universa U 1635 P -35 ... 200 °C 16,5 L
Price:
€6,720.00
VAT excluded
Refrigerated thermostat Lauda Universa U 1635 P -35 ... 200 °C 16,5 L
- LAUDA Universa U 1635 P refrigerated thermostat, 220-240 V;
- 50/60 Hz Performance features: Bath circulation thermostat with advanced electronics ensures precise control accuracy.
- Future-proof through modularity: LAUDA Universa with interchangeable control head and heating/cooling base enable flexible adaptation to current and future requirements.
- Clear overview, intuitive operation: The colour 3.5-inch TFT display with trend graph provides a clear menu navigation in six languages and clear operating-status symbols, easily controlled via cursor and soft keys.
- Safety in focus: The dedicated Tmax button enables convenient access to the essential overtemperature protection setting during commissioning.
- Efficient Variopump with six adjustable power levels.
- The flexible flow distribution for internal and external circulation ensures optimum flow rate and pressure. An easily accessible front switch on the control head enables adjustment of the pump power during operation.
- Energy-efficient refrigeration system: Capillary tube technology with speed-controlled inverter compressor and speed-controlled fan for reduced energy costs and long service life.
- Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling.
- Adaptive bath-edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapours to protect the electronics. To increase operational safety and extend service life.
- The range of functions includes a programmer, calibration options and weekly scheduler for versatile and precise process control.
- Intelligent remote control and monitoring: Integrated web server allows flexible remote operation in the company network via the LAUDA Command App or browser, secured by PKI and 2-factor authentication.
- Connection to LAUDA.LIVE enables worldwide, cloud-based data analysis and remote maintenance.
- Flexible networking: Modern connectivity through Ethernet and USB interfaces integrated as standard, as well as ten optional interface modules for versatile communication solutions.
- Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
- Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature-control medium management with automatic limit-value adjustment.
- For reliable operation and improved safety of your valuable samples.
- Technical data: Working temperature range: -35 ... 200 °C Operating temperature range: -35 ... 200 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,02 ± K Heating power range: 2.3 ... 2.8 kW Current consumption: 12 A Bath size (WxDxH): 200 x 300 x 200 mm Bath opening (WxD): 200 x 300 mm Bath volume min. / max.: 11,0 / 16,5 L Pump pressure max.: 0,6 bar Pump flow rate max. (pressure): 22 L/min In / Outlet connection thread (external): M16 x 1 Dimensions (WxDxH): 310 x 610 x 736 mm Weight: 41 kg Refrigerant stage 1: R-290 (GWP 3);
- 0,052 kg;
- 0,0 t CO2-eq Power supply: 220-240 V;
- 50/60 Hz Power plug: Power cable with angled Schuko plug (CEE7/7) Cooling capacity (pump level): 200 °C (6);
- thermal oil 100 °C (6);
- thermal oil 20 °C (6);
- ethanol;
- 0,5 kW (50 Hz);
- 0,5 kW (60 Hz) 10 °C (6);
- ethanol;
- 0,47 kW (50 Hz);
- 0,47 kW (60 Hz) 0 °C (6);
- ethanol;
- 0,43 kW (50 Hz);
- 0,43 kW (60 Hz) -10 °C (6);
- ethanol;
- 0,37 kW (50 Hz);
- 0,37 kW (60 Hz) -20 °C (3);
- ethanol;
- 0,15 kW (50 Hz);
- 0,15 kW (60 Hz) -30 °C (3);
- ethanol;
- 0,05 kW (50 Hz);
- 0,05 kW (60 Hz) -35 °C (3);
- ethanol;
- 0,02 kW (50 Hz);
- 0,02 kW (60 Hz) Standard accessories: 1 bath lid Pump connection set with M16x1 stainless steel connections 2 union nuts, 2 sealing plugs
-
