Heating thermostat Alpha A 24 25…100 °C 25 L Forciertest

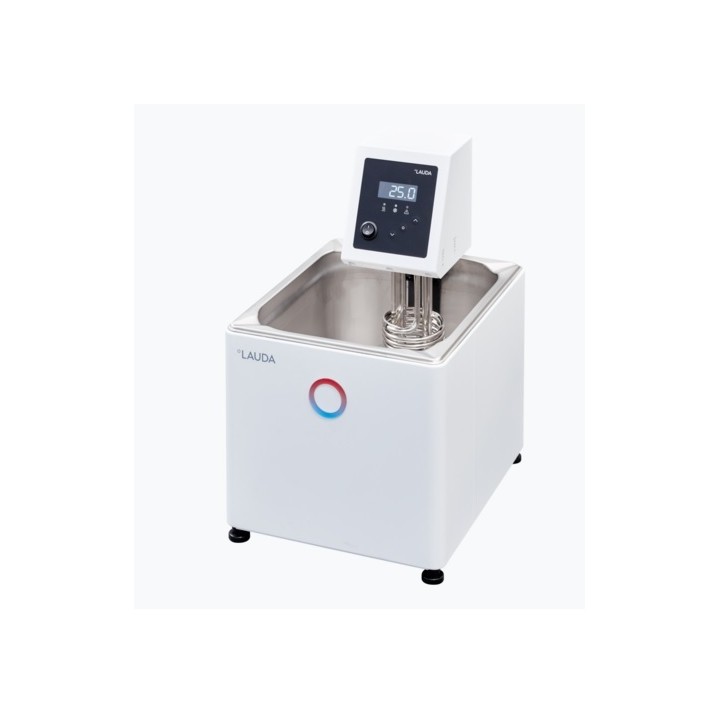

LAUDA Alpha A 24 heating thermostat 220 V; 60 Hz + 230 V; 50 Hz Performance features: Bath thermostat with very simple operation 1-line LED display for showing actual or setpoint value User-friendly menu navigation and very simple 3-button operation Fully electronic continuous controller Underlevel and overtemperature protection for operation with non-flammable liquids Alarm message, acoustic and visual Circulation pump with flow reduction Bath vessel made of deep-drawn stainless steel Optional cooling coil and pump circulation set Technical data (according to DIN 12876): Operating temperature range: 25 ... 100 °C Ambient temperature range: 5 ... 40 °C Temperature constancy: 0,05 ± K Heating capacity max.: 1,5 kW Power consumption max.: 1,5 kW Current consumption: 7 A Pump pressure max.: 0,2 bar Pump flow rate max. (pressure): 15 L/min Bath volume min. / max.: 18,0 / 25,0 L Bath size (WxDxH): 295 x 374 x 200 mm Dimensions (WxDxH): 332 x 535 x 420 mm Weight: 11 kg Power supply: 220 V; 60 Hz / 230 V; 50 Hz Mains plug: Power cable with angled Schuko plug (CEE7/7) Standard accessories: 1 screw clamp Flow reduction
