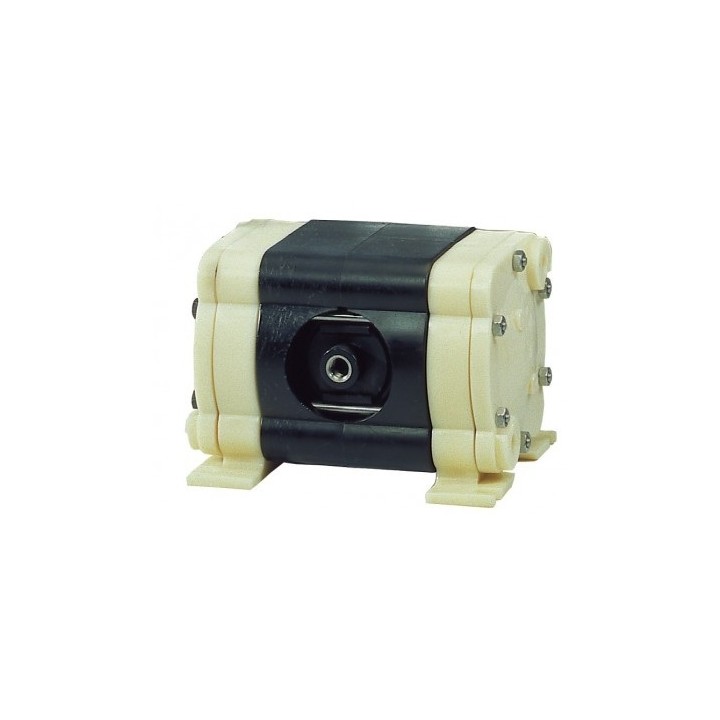

Oil-free diaphragm pump PVDF/PTFE 16 L/min, 1,4–6,8 bar

Compressed-air-operated double-diaphragm pump for conveying viscous, corrosive and abrasive liquids. The plastic double-diaphragm pump is suitable for conveying small quantities, in laboratory applications and for occasional filling. Suction and discharge ports are designed as 1/4'' female threads. Solid particles up to 3 mm Ø can be conveyed. Required air pressure at start-up min. 2 bar, operating air pressure max. 8 bar. Housing, diaphragms, valve balls and seals are available in different materials. Compressed-air-operated diaphragm pump High hydraulic performance Maintenance-optimized design and easy installation Blockage-free operation Completely oil-free Self-priming (also when dry) Typical applications for the double-diaphragm pump include, for example, chemical circulation and feed, liquids with solid particles such as paints and coatings, electroplating liquids, etc.
