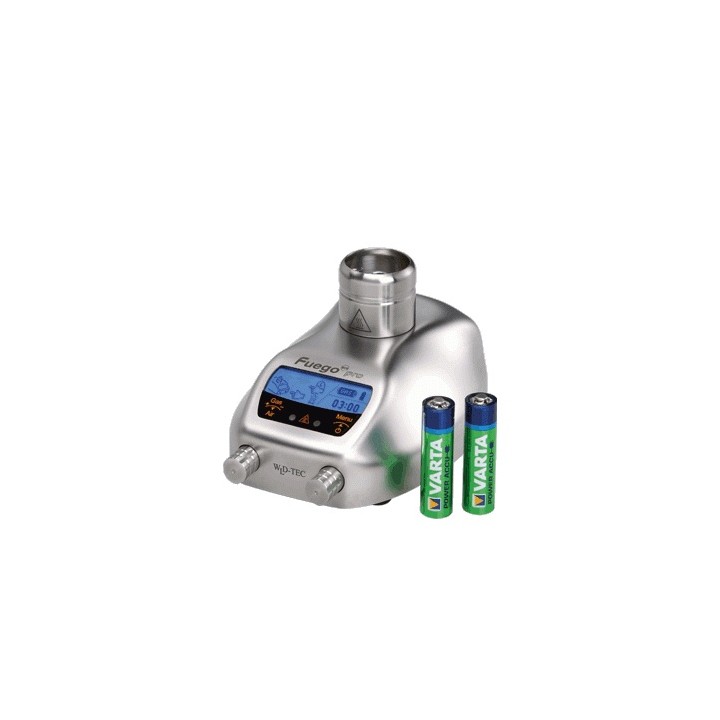

Fuego SCS pro laboratory gas burner | Hornik

Fuego SCS pro safety laboratory gas burner with IR sensor, tilt sensor, charging function & 2 batter

WLD-TEC
zł3,264.08
VAT excluded
Fuego SCS pro safety laboratory gas burner with IR sensor, tilt sensor, charging function & 2 batter
Please sign in to use quick buy.

Product images may differ from the original.

Item no.: 9005585

Delivery time: > 2 business days

Technical consulting for your application

Need support with selection or specification? Send us an inquiry.

Suitable for projects, framework agreements and institutional procurement

Delivery time, availability and project details are confirmed during inquiry or ordering.

Send inquiry
Personal support +492261 815870 Mon–Thu 08:00–16:00, Fri 08:00–13:00

  • Fuego SCS pro with battery operation – safety laboratory gas burner For all flame-related applications in the laboratory.
  • The low housing enables convenient working;
  • the streamlined design reduces disruption to the airflow of a cleanroom workbench.
  • The Fuego SCS can optionally be operated with a foot pedal, button function or contactless IR sensor.
  • Made of stainless steel, with fire-resistant controls.
  • With DoubleClick IR sensor, button function or foot pedal. (Foot pedal optional).
  • Double Click IR Sensor: The activatable Double-Click safety function starts the burner only after two activations of the IR sensor, adjustable IR sensor range: 5 to 50 mm Battery operation (9h) 2 batteries (Mignon AA) Fast charging function (3h) and safety tilt sensor New: Illuminated graphic display: animated, self-explanatory and language-free.
  • Makes it easier to quickly select all functions. 6 programs with burn-time display: adjustable from 1 s to 2 h.
  • New: The first safety laboratory gas burner with comfort package: -Cooling-time reminder for inoculating loops -Temperature control for heating media -Gas consumption display for gas cartridges -Flexible and individual through user selection -Acoustic signals for support New: Additional safety assistants: -Zero-Pressure shut-off for a pressureless gas hose at the end of work. -Graphic installation instructions for trouble-free commissioning. - SCS Safety Control System with gas safety shut-off: ignition, flame and temperature monitoring, automatic device shut-off, residual heat display, burner head installation monitoring. - BHC burner head monitoring. -Removable burner head. -Tilt adjustment right / left. -Turboflame. -Holder for 3 inoculating loop holders. -Nozzles for natural gas, propane / butane gas. -Dimensions (W x H x D): 103 x 49 x 130 mm. -Tested by DIN-DVGW, test mark NG 2211 AS1067. -Warranty: 2 years.
  • Scope of delivery: Fuego SCS pro with IR sensor, button function & graphic display 6 standard programs for IR sensor, button function, foot pedal and temperature control 2 Mignon batteries (AA), already inserted in the battery compartment at the factory DoubleClick IR sensor (activatable) SCS (Safety Control System) with BHC (Burner Head Control) Removable and dismantlable burner head Tilt sensor with gas safety shut-off Fast charging function Tilt adjustment right / left Holder for 3 inoculating loop holders Nozzles for natural gas, propane/butane gas Adjustable IR sensor range and DoubleClick time Turboflame Cleaning flap for burner shaft Multifunctional wrench for gas connection Screwdriver for burner head and burner shaft cover Hose nozzle with union nut Switching power supply (worldwide) Operating instructions and 2-year warranty

  • Brand
  • Reference
    9005585
